Overview
-

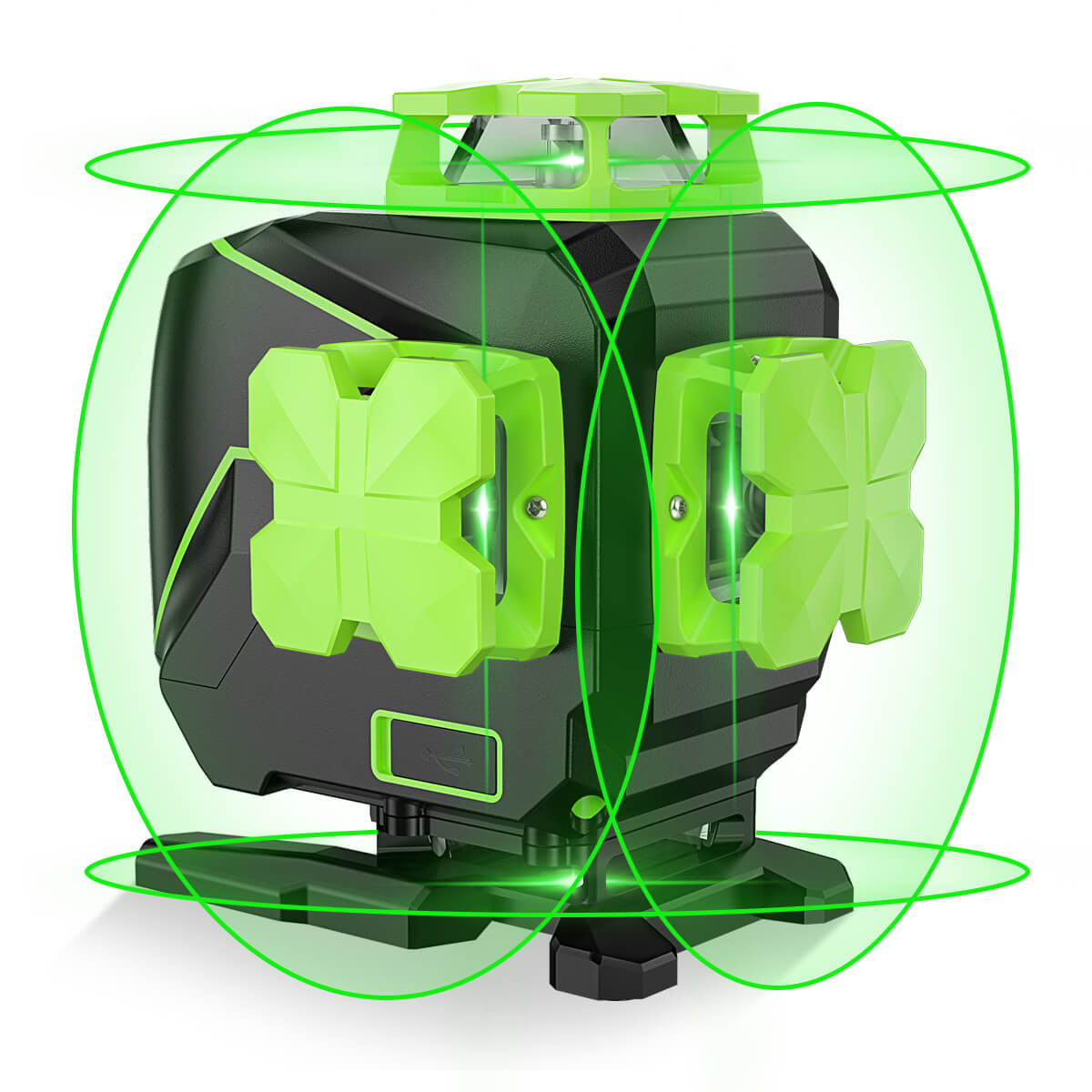

4 X 360° WITH TOP & FLOOR LINE LASER: This laser tool provides four 360 planes of laser light. The top 360° horizontal line can be used for ceiling installation. The 360° floor horizontal line is for tiling installation. With the lifting base, the 360° floor laser can raise from the surface to project over and travel past uneven surfaces or obstructions between 1" and 3.54" height. Two 360° vertical lines cross at 90°angles makes user quickly visualize and finish square layout.
-
TRIPLE POWER METHODS & TYPE-C CHARGING PORT: This 360 laser tool adopted large capacity Li-ion battery (can be purchased easily at local market) for extended run-time, or with 4 AA alkaline batteries. Besides, this 4D laser level can be used at job site by plugged in when take out the battery. With Type-C charging port, the 16 lines laser level can also be charged by laptop, power bank, car charger, etc.
-
MULTIFUNCTIONAL LASER TOOL: The four 360° laser planes can be selected individually by separate H and V button on the keypad. With smart pendulum, the laser tool self levels and indicates out-of-level condition while pendulum unlocked. The line laser will beep when out of self-leveling range ±3.5°. Once pendulum locked, it switches to manual mode to lock lines for use at any angle. Pulse mode extends laser range up to 200Ft. with Huepar Laser Receiver LR-6RG/LR-5RG.
-
OUTDOOR PULSE MODE: This laser level projects green laser beam which is 4 times brighter than standard red beams with a working range up to 130Ft of an accuracy +/- 1/9" at 33Ft. Besides highly visible green beam, the pulse mode function extends laser working range up to 200Ft with Huepar LR-5RG/LR-6RG Line Laser Receiver in bright light or outdoor conditions and continuous working time.
-
DURABLE DESIGN & PACKAGE CONTENTS: The laser offers 1/4"-20 mount thread to suit a standard tripod or pole mount. The laser tool is covered by TPR soft rubber, which delivers soft touch and stronger protection. IP54 water/dust resistance help withstand tough job site conditions.
With advanced laser level technology, Huepar is committed itself to providing solutions for a wide variety of applications of greater accuracy and precision. Shop Huepar cross line laser level, complete your projects more efficiently and with greater ease.
S04CG-L 4 x 360° Green Beam Floor Cross Line Laser Level Specifications:
- Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
- Number of Lines: Two 360° horizontal floor laser lines & Two 360° Vertical laser lines
- Laser Wavelength: 505-520nm
- Horizontal/Vertical Accuracy: ±1/9 inch at 33Ft.
- Leveling/Compensation Range: ±3.5°
- Working Distance (Line): 130Ft (100 LUX), 200Ft. with Huepar Receiver LR-5RG/LR-6RG
- Power Source: Li-ion battery & 4×AA (LR6) batteries
- Operating Time: with Lithium Battery: 5 hours with all laser beams on; with AA Batteries: 0.5 hours with all laser beams on
- IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough
- Mount Size: 1/4"-20
WARNING: Do not point the laser beam directly into the eyes. The device is a laser class 2 laser product according to IEC / EN60825-1 / 2014. It is allowed to use the device without any further safety precautions. The eye protection is usually secured by aversion reactions and blink reflex.
4 X 360°Laser Lines & Line Switching :
- This cross line laser level provides four 360 planes of laser light. The top 360° horizontal line can be used for ceiling installation. The 360° floor horizontal line is for tiling installation.
- Two 360° vertical lines cross at 90°angles makes user quickly visualize and finish square layout.
- Short press the "H" and "V" buttons on the keypad to switch the Horizontal and Vertical laser lines separately.
- The four laser lines can be selected individually depends on job site applications.
- Huepar S04CG-L laser level is a complete tool to cover the floor, wall, ceiling all around the room.
Self-leveling mode&Manual mode
Self-leveling mode:
Once the pendulum unlocked, the self-leveling mode is enabled. The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±3.5°.
Manual mode:
When the pendulum is in the locked position, the laser tool can be placed for use at any angle.
The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.
In manual mode, when all laser lines are switched off, the laser tool will shut OFF automatically after about 5 minutes of inactivity.
Outdoor Pulse Mode
- Pulse mode extends the working range up to 200Ft in brighter working conditions when using with Huepar Line Laser Receiver.
- It is compatible with Huepar LR-6RG / LR-5RG Laser Detector only.
- Note: Keep the pulse mode on when using with a receiver.
Triple Power Methods
- The Li-ion battery comes with type-c charging port that can be charged by laptop, power bank, car charger, etc.
- This laser level also has a holder for installing 4 AA batteries to use the tool.
- The 16 lines laser level can be used at the work site by plugged in directly when taking out the battery.
Cross Line Laser Level Package Contents
- 1 x 4D Green Tiling Laser Level S04CG-L
- 1 x Rechargeable Li-ion Battery
- 1 x Power Adapter& Type-C cord
- 4 x AA (LR6) Batteries & 1 x AA Battery Holder
- 1 x Magnetic Bracket
- 1 x Lifting Base
- 1 x Steel Sheet
- 1 x Laser Target Plate
- 1 x Laser Level User Manual
- 1 x Portable Bag
