Huepar P04CG Laser Level

Huepar P04CG Laser Level


Regular price $329.99
Regular price $329.99 Sale price $349.99
- $20 % Sold out

Huepar P04CG Laser Level

Huepar P04CG Laser Level

check_circle Tax included, shipping calculated at checkout.

Regular price $329.99
Regular price $329.99 Sale price $349.99
Sold out

4 X 360° Osram Green Laser Lines Level
Accuracy of ± 1/9" At 33ft
Self-Leveling Range ±3°
Up to 200ft Range with Pulse Mode
Phone App & Bluetooth Control
10.8v / 2600mah Large Capacity Li-Ion with Type-C Port
360° Magnetic Base, 1/4”-20 and 5/8”-11 Threads
Hard Cary Case & Durable Design


Add Top Accessories

Learn which accessories are right for you >
Huepar LR8RG Line Laser Receiver

Huepar LR8RG Line Laser Receiver

$69.99
Huepar TPD14 - 56"/142CM Adjustable Tripod HUEPAR CA - Laser Level

Huepar TPD14 - 56"/142CM Adjustable Tripod

$69.99
Huepar LP36 - 12 Ft./3.7m Telescoping Pole HUEPAR CA - Laser Level

Huepar LP36 - 12 Ft./3.7m Telescoping Pole

$119.99

Buying Spare Batteries?

Series P Lithium Battery HUEPAR UK - Laser Level

Lithium Battery for Series P

$39.99

Expand Extended Warranty?

Learn more >

Huepar Care - 2-Year Official Warranty

$0.00

Huepar Care - 1 Year Extended Warranty

$29.99

Out of stock

Pay with Ease

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Trusted Delivery with UPS/Canada Post


add_shopping_cart

-

Ordered

local_shipping

- - -

Order Ready

redeem

- - -

Delivered

View full details

    ±1/9 inch at 33Ft

    Horizontal/Vertical Accuracy: ±3MM/10M

    Phone App &
    Bluetooth control

    Bluetooth connectivity enables you to control the 360 laser level around the room with Huepar App or remote control.

    Rechargeable Li-ion Battery

    10.8V / 2600mAh Li-Ion battery with Type-C connector provides up to 7 hours of running time.

    Self-leveling Range ±3° & Manual mode

    The laser tool self-levels and indicates out-of-level when unlocked. When the pendulum is locked, the laser tool can be used at any angle.

    High Protection Grade

    The durable, high-quality shockproof enclosure provides 4 ft. collision protection. It's compact and lightweight for easy gripping, yet large enough to sit stably, making it ideal for construction site work.

    4x360°

    Osram Green Beam

    P04CG Professional 4x360° Green Laser Lines: 2 horizontal and 2 vertical 360° planes. Top horizontal for ceiling installation, floor horizontal for tiling or leveling, and vertical lines for wall leveling.

    Huepar App

    Phone & Bluetooth Control

    Bluetooth connectivity allows control of the 360 laser level with the Huepar App or remote control to switch laser lines, pulse mode, and select laser planes.

    10 hours running time

    Large Capacity Li-Ion Battery

    Laser Level with 10.8V / 2600mAh Li-ion battery providing 10 hours runtime. Quick-release, easy to use, and charge separately with four power indicators for charging status.

    Pulse Mode

    Self Leveling Mode

    Self-levels within 4°, or switch to manual mode for any angle. Offers a 40m/130ft range with ±3mm at 10m accuracy. Outdoor pulse mode with Huepar receiver extends range to 60m/200ft.

    1/4"-20

    Metal Laser Window

    Over-molded metal laser window with IP54 resistance, replaceable with a screwdriver.

    Comes with a hard carry case for easy transport and storage.

    In the Box

    Huepar P04CG
    Huepar P04CG
    × 1
    Hard Carry Case
    Hard Carry Case
    × 1
    Li-ion Battery
    Li-ion Battery
    × 1
    Type-C Power Cord
    Type-C Power Cord
    × 1
    Magnetic Bracket
    Magnetic Bracket
    × 1
    Steel Sheet
    Steel Sheet
    × 1
    Magnetic Target
    Magnetic Target
    × 1
    User Manual
    User Manual
    × 1

    Specifications

    Laser Info

    Osram Green Beam
    4 x 360° 16 Line Laser Levels
    Wavelength 510-530nm
    Class 2 (IEC/EN60825-1/2014)

    Laser Accuracy

    ±3mm/10m
    (±1/9 in. at 33 ft)

    Leveling Range / Time

    ±3°
    3 seconds

    Working Range

    Max Working Distance
    20m/66ft
    40m/130ft with Pulse Mode
    Minimum Distance From The Ground
    10mm
    Minimum Distance From The Wall
    13mm

    Power System

    Li-ion Battery 11.1V 2600mAh
    Working Time 7 hrs
    Charging Time 4 hrs
    TYPE-C Charing Port

    Durable Design

    Working Temperature
    -10℃ ~ 50℃ (14℉ ~ 122℉)
    Storage Temperature
    -20℃ ~ 70℃ (-4℉ ~ 158℉)
    Main Material
    ABS + Metal
    IP Rating
    IP54

    Dimensions

    Model Weight
    930g (2.05 pounds)
    Model Size
    137 x 96 x 147mm
    Item Weight
    1.71kg (‎3.76 pounds)
    Package Dimensions
    37 x 30.8 x 13.6cm
    (‎‎‎14.57 x 12.13 x 5.35 inches)

    Suitable Accessories

    Mount Size
    1/4''-20
    Laser Detector
    LR5RG/LR6RG/LR8RG
    Tripod
    LP36/TPD05/TPD14/TPD16
    Base Adapter
    AT2/PV3/PV11+/PV15

    Packing List

    1 x Huepar P04CG
    1 x Bluetooth Remote Control
    1 x Rechargeable Li-ion Battery
    1 x Power Adapter
    1 x Type-C cord
    1 x Magnetic Bracket
    1 x Steel Sheet
    1 x Laser Target Plate
    1 x Hard Carry Case
    1 x User Manual

    Find your perfect laser level

    FAQ

    Can you tell me which laser level has a longer working range with the S04CG or P04CG receiver?

    For S04CG, Working Distance: ≥20m, ≥40m with detectorFor P04CG, Working Distance (Line): 40m/130Ft (100 LUX), 60m/200Ft. with Huepar Receiver LR-5RG/LR-6RG.

    Can you tell me what he differences between the P04CG and S04CG?

    P04CG and S04CG are the same type of products, and they are close in most performances.Compared with S04CG, P04CG is more novel. The battery life is 7 hours, while S04CG is 5 hours.In addition, the Leveling/Compensation Range allowed by P04CG: ±4°

    Can laser level be used outdoors?

    The outdoor ambient light interference will affect visibility, even green light is recommended for indoor use.In the outdoor environment, even the green light visibility is only 3 meters, which is a normal phenomenon.

    Why is the laser level display wrong/ display angles?

    The angle displayed on the screen of the machine is only a relative angle, which can be replaced on the relative horizontal plane and reset to zero, and the current angle is set to 0 degrees

    Why does the machine's laser line keep flashing and sounding an alarm?

    Inadvertent mishandling, resetting the angle at tilt to 0° when in a tilted position.

    What's the warranty?

    After you receive the machine, scan the QR code on our carton, fill in the information and submit to get a 2-year warranty.
    At the same time, after you submit, we can also check your warranty information on the system, thank you!

    Customer Reviews

    Based on 10 reviews
    90%
    (9)
    10%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    V
    Viktor Chepurnyi

    Huepar P04CG Laser Level

    M
    Martin Rompré

    Huepar P04CG - 4x360° Laser Level Self Leveling 4D Green Beam Bluetooth Connectivity Laser Tool

    E
    Edward Cicero Cicero
    4d laser

    Excellent quality for the price. definitely recommend

    D
    David Castellan
    Huepar P04CG

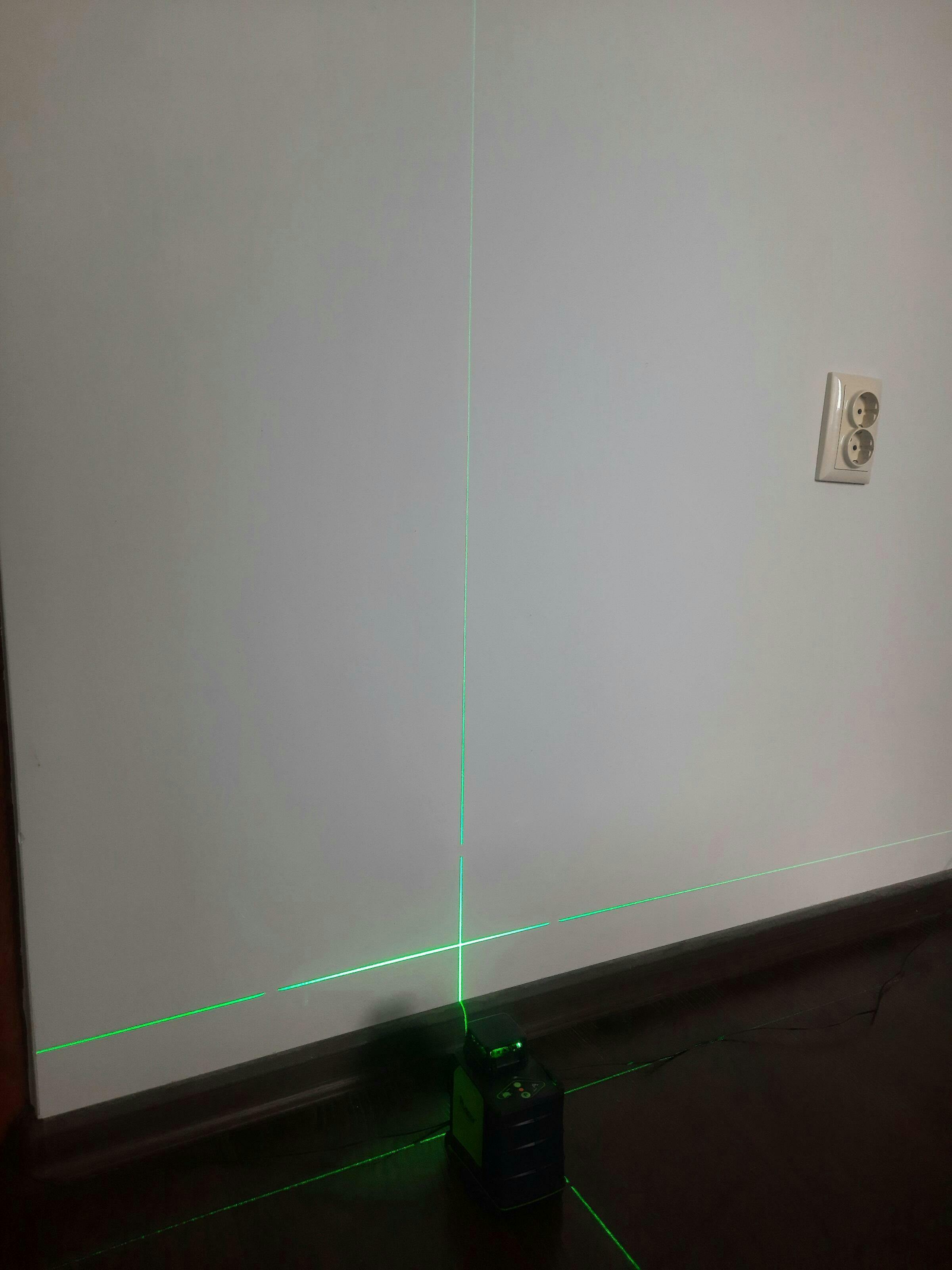

    Great product to date, only issue has been outside when it is extremely sunny, the receiver does not pick up the green laser effectively, worked well in cloudy conditions.

    Z
    Zavian Wilson
    best laser level on the market

    This laser level does it all...

    Endorsed By

    ≥ 5,000 times Button test

    All buttons are tested to ensure proper functionality.

    ≥ 5,000 times Switch test

    The switch is tested repeatedly to ensure that the machine works stably.

    ≥ 1,000 times Charging test

    Make sure the charging interface is working properly and not loose.

    ≥ 500 hours Working test

    Laser tube aging test to ensure no brightness attenuation.

    IP54 extreme environment test

    Waterproof and dustproof, ensuring normal use in dusty environments.

    Natural drop and shock test

    Simulate natural drops while maintaining accuracy.

    Simulated transportation

    Simulate complex transportation environments to ensure unchanged accuracy.

    High and low temperature test

    Make sure the device can work normally between -10℃ ~ 50℃

    High Quality Ensured by Professional Testing

    Every product goes through 8 strict inspection processes before it is delivered to you to ensure that you receive products of consistent quality.
