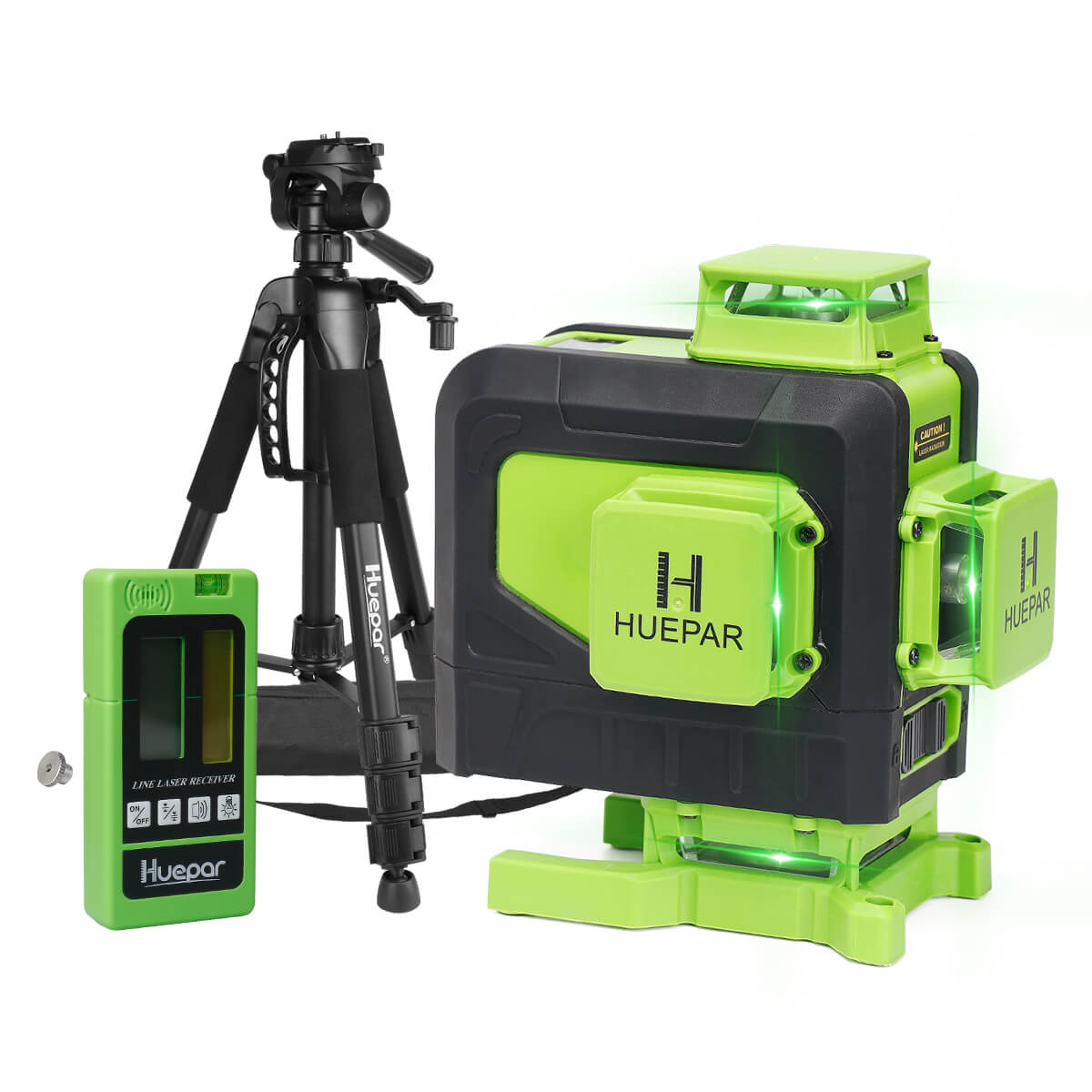

Huepar 904DG Laser level
Huepar 904DG Laser level
Huepar 904DG Laser level
Tax included, shipping calculated at checkout.
Select your product/products
Add Top Accessories
Huepar LR8RG Line Laser Receiver
Huepar TPD14 - 56"/142CM Adjustable Tripod
Huepar LP36 - 12 Ft./3.7m Telescoping Pole
Buying Spare Batteries?
Expand Extended Warranty?
24 in stock
Couldn't load pickup availability
Pay with Ease
Trusted Delivery with UPS/Canada Post
-
Ordered
- - -
Order Ready
- - -
Delivered
Huepar Accessories Guides
Huepar Line Laser Receiver
The LR5RG / LR6RG is a laser detector compatible with most Huepar laser levels on Pulse Mode, detecting red or green lasers up to 200 feet away. Main products include LR5RG, LR6RG, LR8RG.
Huepar Tripods
Made of aluminum alloy for stable support with a maximum load capacity of 10kg/22lb. Compatible with most measuring tools. Main products: LP36, M3Y, TPD05, TPD14, TPD16.
Huepar Laser Adapter
The AT2 adapter can be connected to any device that features a male thread, including Huepar laser levels such as 622CG/R, 621CG/R, 8211G, among others. The AT3 adapter is compatible with devices having 5/8" or 1/4" male thread, supporting models like 603CG/R, 621CG/R, and more.
Huepar Magnetic Bracket
This accessory raises the beam to your desired reference height, featuring TPR soft rubber on all sides for shock resistance. Main products: PV3, PV5, PV7, PV11+, PV15.
Huepar Care
By purchasing this one-year extended warranty, your Laser Level can enjoy a total of 3 years of warranty service.
1. This product (Huepar Care) is a special service product and cannot be returned.
2. Valid for one year starting from the date of purchase.
3. The service includes Free replacement of accessories such as laser windows, chargers, batteries, etc, and other accidental damage.
4. Restricted to huepar.com orders.
5. Huepar official has the final right to interpret this.
±1/9 inch at 33Ft
Horizontal/Vertical Accuracy: ±3MM/10M
With Remote control
The remote control enables to select three 360° laser lines individually at a distance up to 33Ft.
The laser line(s) of ground laser level can be temporarily turned OFF by the remote control when you need to leave for a while.
Long Working Time
3.7V / 5200mAh Li-ion Battery and provides up to 6-12 hours of running time.
Wall Hanging Plate
A dedicated adapter helps to hang the laser tool, bringing the laser window closer to the wall. At this time, the bracket can be inverted or flipped sideways.
Magnetic Pivoting Base
360° Strong Magnetic Pivoting Base: Allows for attachment to metal track and steel，supporting you to turn the laser level around at 360 degree, projecting lines at any angle.
SELF-LEVELING RANGE ±4°
Self-leveling mode
Once the pendulum unlocked, self-leveling mode is enabled.The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.
KEEP SELF-LEVELING
Manual mode
When the pendulum locked, the laser tool can be placed for use at any angle.
The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.
FOR OUTDOOR WORK
Outdoor Pulse Mode
Pulse mode extends the working range up to 165 feet in brighter conditions when used with the Huepar Line Laser Receiver. It is only compatible with the Huepar LR-6RG / LR-5RG Laser Detector. Note: Keep the pulse mode on when using with a receiver.
EASY TO SWITCH THE LINE
Work with the Remote Control
Short press the H and V buttons on the keypad to switch the horizontal and vertical laser lines separately. The remote control allows selection of the 4x360° laser lines individually from up to 33 feet away. In manual mode, when all laser lines are off, the indicators remain on.
FINE-TUNING BRACKET
Strong Magnetic Bracket
The Huepar Laser Level Fine-tuning Bracket features four fine adjustment knobs, allowing precise adjustments: left and right within 1.2 inches (3cm), front and back within 2.2 inches (5.5cm), height within 3.6 inches (9cm), and 360° horizontal rotation. Graduations are marked in inches and centimeters for easy reading. A dedicated adapter enables the laser tool to be hung closer to the wall for more accurate work.
360° ADJUSTMENT
Metal Micro-Adjusting Base
The laser level is equipped with a metal micro-adjust fine-turning pivoting base, and the micro rotary knob allows for 360° adjustment. Users can adjust the height by rotating the three legs of the adapter, even on a tilted surface. The 5/8" threaded mount allows it to be attached to a tripod or other tools for use.
6-12 HOURS OF RUNNING TIME
Long Working Time
Huepar 904DG Laser Level employed a large capacity of 3.7V / 5200mAh Li-ion Battery and provides up to 6-12 hours of running time. The Li-ion Battery comes with a Type-C charging port that can be charged separately. When taking out the battery, this 4D laser level can be used at the job site by plugged in directly. The 16 lines laser level can also be charged by laptop, power bank, car charger, etc.
In the Box
Specifications
Laser Info
Osram Green Beam
4 x 360° 16 Line Laser Levels
Wavelength 505-520nm
Class 2 (IEC/EN60825-1/2014)
Laser Accuracy
±3mm/10m
(±1/9 in. at 33 ft)
Leveling Range / Time
±4°
3 seconds
Working Range
Max Working Distance
40m/130ft
60m/197ft with Pulse Mode
Minimum Distance From The Ground
17mm
Minimum Distance From The Wall
9mm
Power System
Li-ion Battery 3.7V 5200mAh
Working Time 4 hrs
Charging Time 5 hrs
Type-C Charing Port
Durable Design
Working Temperature
-10℃ ~ 50℃ (14℉ ~ 122℉)
Storage Temperature
-20℃ ~ 70℃ (-4℉ ~ 158℉)
Main Material
ABS
IP Rating
IP54
Dimensions
Model Weight
678.1g (1.49 pounds)
Model Size
134 x 87 x 147mm
Item Weight
0.74 kg (1.63 pounds)
Package Dimensions
28 x 24 x 19cm
(10.9 x 9.6 x 7.6 inches)
Suitable Accessories
Mount Size
1/4''-20
Laser Detector
LR5RG
Tripod
LP36/TPD05/TPD14/TPD16
Base Adapter
AT2/PV3
Packing List
Find your perfect laser level
 Huepar 904DG Laser level$249.99 |  Huepar 903DG Laser level$219.99 |  Huepar S04CG Laser Level$299.99 |  Huepar P04CG Laser Level$329.99 |  Huepar 704CG Laser Level$249.99 | |
|---|---|---|---|---|---|
| Product Info | |||||
Product SKU |
904DG
|
903DG
|
S04CG
|
P04CG
|
704CG
|
Product type |
4D Laser Levels
|
3D Laser Levels
|
4D Laser Levels
|
4D Laser Levels
|
4D Laser Levels
|
| Featured | |||||
Number of Lines |
|
|
|
|
|
Laser Lines |
|
|
|
|
|
Laser Beam Supplier |
|
|
|
|
|
Laser Beam Color |
|
|
|
|
|
Laser Wavelength |
|
|
|
|
|
Line Accuracy |
|
|
|
|
|
Leveling / Compensation Range |
|
|
|
|
|
Max Self-leveling Time (Seconds) |
|
|
|
|
|
Extra features |
—
|
—
|
|
—
|
—
|
Bluetooth Connectivity |
|
|
|
|
|
Remote Control |
|
|
|
|
|
Dot Accuracy |
|
|
|
|
|
Line Switching |
|
|
|
|
|
Pulse Laser Receiver Mode |
|
|
|
|
|
Working Range (60-100 LUX) |
|
|
|
|
|
Working Range with Detector |
|
|
|
|
|
AA Battery |
|
|
|
|
|
Li-ion Battery |
|
|
|
|
|
Working Time (Hours) |
|
|
|
|
|
Charging Time (Hours) |
|
|
|
|
|
Mount Size |
|
|
|
|
|
Durable Design |
|
|
|
|
|
Hard Carry Case |
|
|
|
|
|
FAQ
What accessories can be used with the Huepar laser level?
What accessories can be used with the Huepar laser level?
When stray light appears from a laser, what could be the cause?
When stray light appears from a laser, what could be the cause?
Can laser level be used outdoors?
Can laser level be used outdoors?
What kind of laser diode is used with 904DG?
What kind of laser diode is used with 904DG?
What applications is the 904DG laser level suitable for?
What applications is the 904DG laser level suitable for?
What's the warranty?
What's the warranty?
Endorsed By
All buttons are tested to ensure proper functionality.
The switch is tested repeatedly to ensure that the machine works stably.
Make sure the charging interface is working properly and not loose.
Laser tube aging test to ensure no brightness attenuation.
Waterproof and dustproof, ensuring normal use in dusty environments.
Simulate natural drops while maintaining accuracy.
Simulate complex transportation environments to ensure unchanged accuracy.
Make sure the device can work normally between -10℃ ~ 50℃
High Quality Ensured by Professional Testing
Every product goes through 8 strict inspection processes before it is delivered to you to ensure that you receive products of consistent quality.
