Overview

Features

Lines Switching & Bluetooth Technology

Short press the "H" and "V" buttons on the keypad to switch the horizontal and vertical laser lines separately. The Bluetooth remote control or Huepar APP allows selecting four 360° laser lines individually up to a distance of 98 feet. The laser lines can be temporarily turned off by the remote control or APP when needed. In manual mode, the laser tool will automatically shut off after about 5 minutes of inactivity when all laser lines are turned off.

Two 360° Horizontal Laser Lines for Ceiling & Tiling Applications

The Huepar S04CG laser tool features a 360° top horizontal line for ceiling installation and a 360° floor horizontal line for tiling. Its lifting base allows the floor laser to raise from 1" to 3.54" to project over uneven surfaces. This 4D cross line laser level offers comprehensive coverage for tile, stone, brick, carpet, and hardwood flooring. Utilizing Osram green laser technology, it provides higher visibility, longer range, increased stability, and greater energy efficiency.

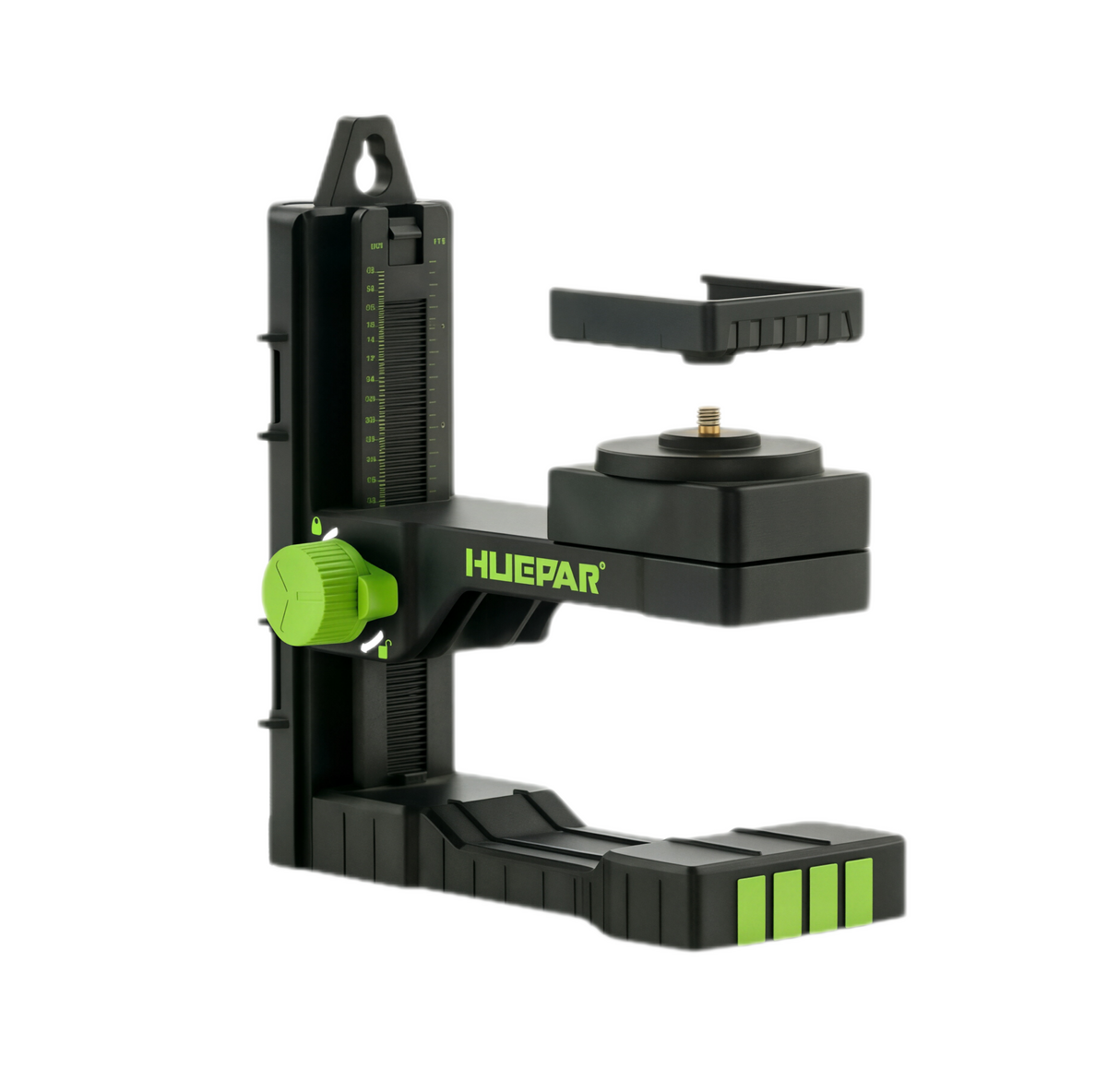

Magnetic Bracket & Mounting Thread

The included strong magnetic bracket allows for quick positioning on metal surfaces, making it easy to use for wall applications. The bracket features four fine-tuning knobs to adjust the left-right position, front-back position, and vertical angle. The laser tool also comes with a 1/4"-20 mount thread, compatible with standard tripods or pole mounts.

Outdoor Pulse Mode

After powering on, short press the power button to switch the pulse mode ON/OFF. When connected to the Huepar APP and Bluetooth remote control, the pulse mode can be switched ON/OFF via the APP and remote control. Pulse mode extends the working range up to 200 feet in brighter conditions when used with the Huepar Line Laser Receiver. It is only compatible with the Huepar LR-6RG / LR-5RG Laser Detector. Note: Keep the pulse mode on when using with a receiver.

Triple Power Methods

Huepar S04CG laser tool uses a large capacity Li-ion battery compatible with the Samsung SB-L110 battery. The Huepar 360 laser level also includes a holder for 4 AA batteries. The 16-line laser level can be used directly plugged in when the battery is removed. With a Type-C charging port, the laser level can also be charged by a laptop, power bank, car charger, etc.

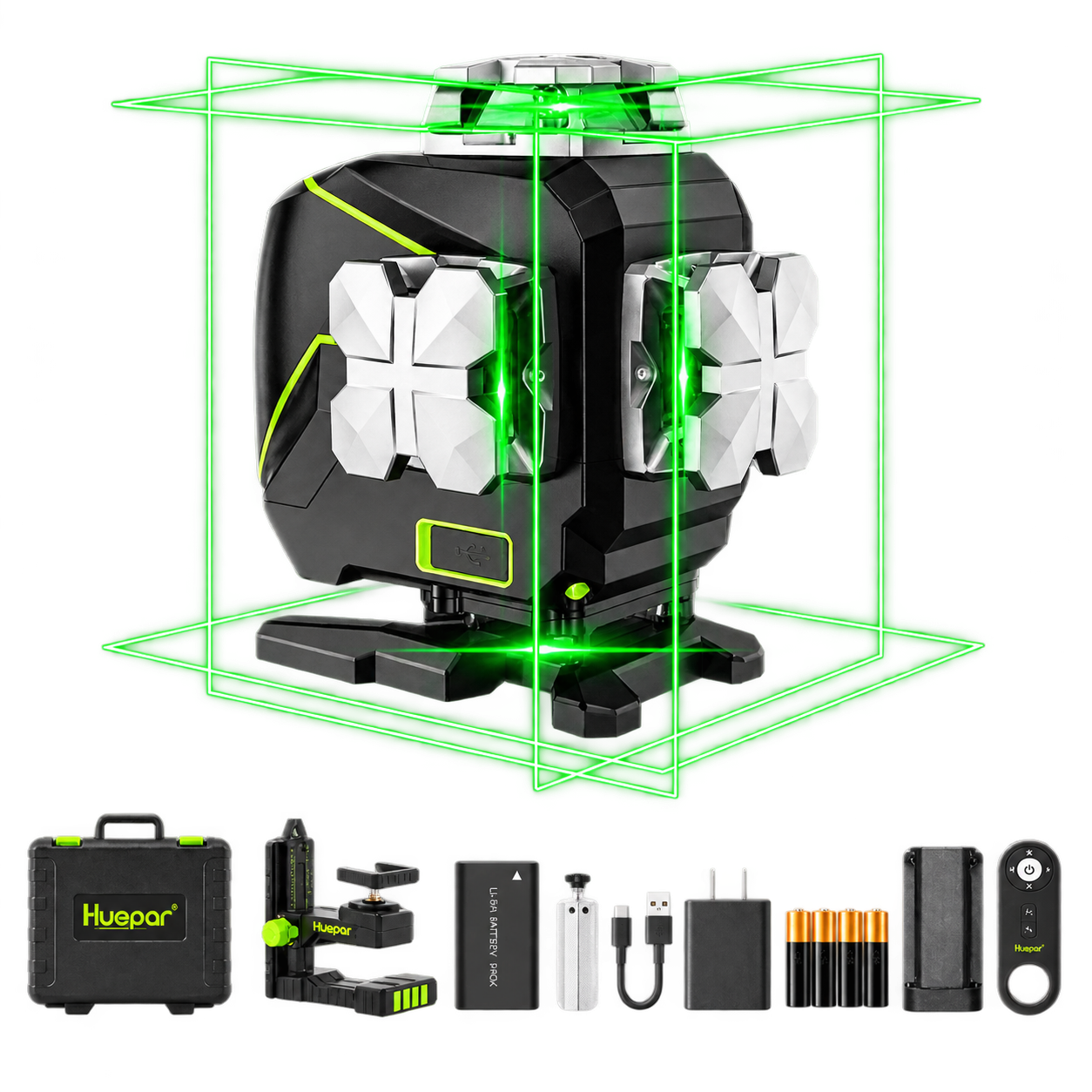

In the Box

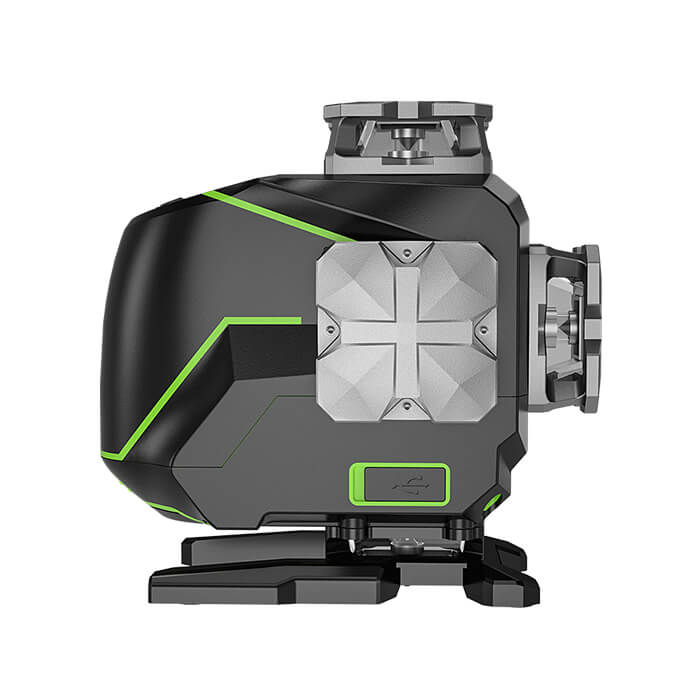

Huepar S04CG

x1

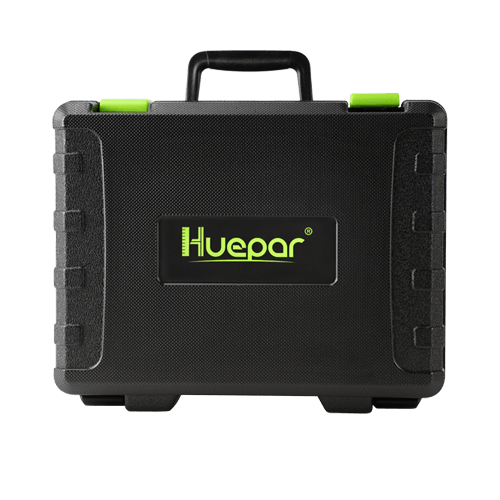

Hard Carry Case

x1

Bluetooth Control

x1

Type-C Charging Kit

x1

Li-ion Battery

x1

AA (LR6) Batteries

x4

AA Battery Holder

x1

Magnetic Bracket

x1

Lifting Base

x1

Steel Sheet

x1

Laser Target Plate

x1

User Manual

x1

Product Comparison

Huepar S04CG Laser Level

Huepar S04CG Laser Level

$299.99
Instock
View more
Huepar 704CG Laser Level

Huepar 704CG Laser Level

$249.99
Instock
View more
Huepar P04CG Laser Level

Huepar P04CG Laser Level

$329.99
Unavailable
View more
Field icon
Bluetooth Function
Bluetooth Function
Field icon
Bluetooth Function
Field icon
LCD Screen
LCD Screen
LCD Screen
Field icon
Remote Control
Remote Control
Remote Control
Field icon
APP
APP
Field icon
APP
Brightness Adjustment
Field icon
Brightness Adjustment
Brightness Adjustment
Field icon
Rotating Base
Field icon
Rotating Base
Field icon
Rotating Base
Field icon
Laser Beam Supplier
Field icon
Laser Beam Supplier
Field icon
Laser Beam Supplier
Field icon

±3mm/10m

Accuracy
Field icon

±3mm/10m

Accuracy
Field icon

±3mm/10m

Accuracy
Field icon

510-530nm

Wavelength
Field icon

505-520nm

Wavelength
Field icon

510-530nm

Wavelength
Field icon

3.5°±1°

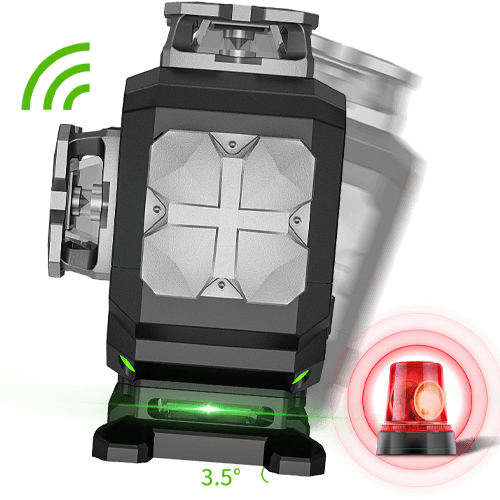

Leveling Range
Field icon

±3.5°

Leveling Range
Field icon

3°±1°

Leveling Range
Field icon

4 seconds

Self-leveling Time
Field icon

3 seconds

Self-leveling Time
Field icon

4 seconds

Self-leveling Time
Field icon

Type-c port

Working Time
Field icon

Type-c port

Working Time
Field icon

Type-c port

Working Time
Field icon

5 hours

Model Weight
Field icon

4 hours

Model Weight
Field icon

4 hours

Model Weight
Field icon

≤20m/66ft,with

Working Range
Field icon

≤40m/130ft

Working Range
Field icon

≤20m/65ft

Working Range
