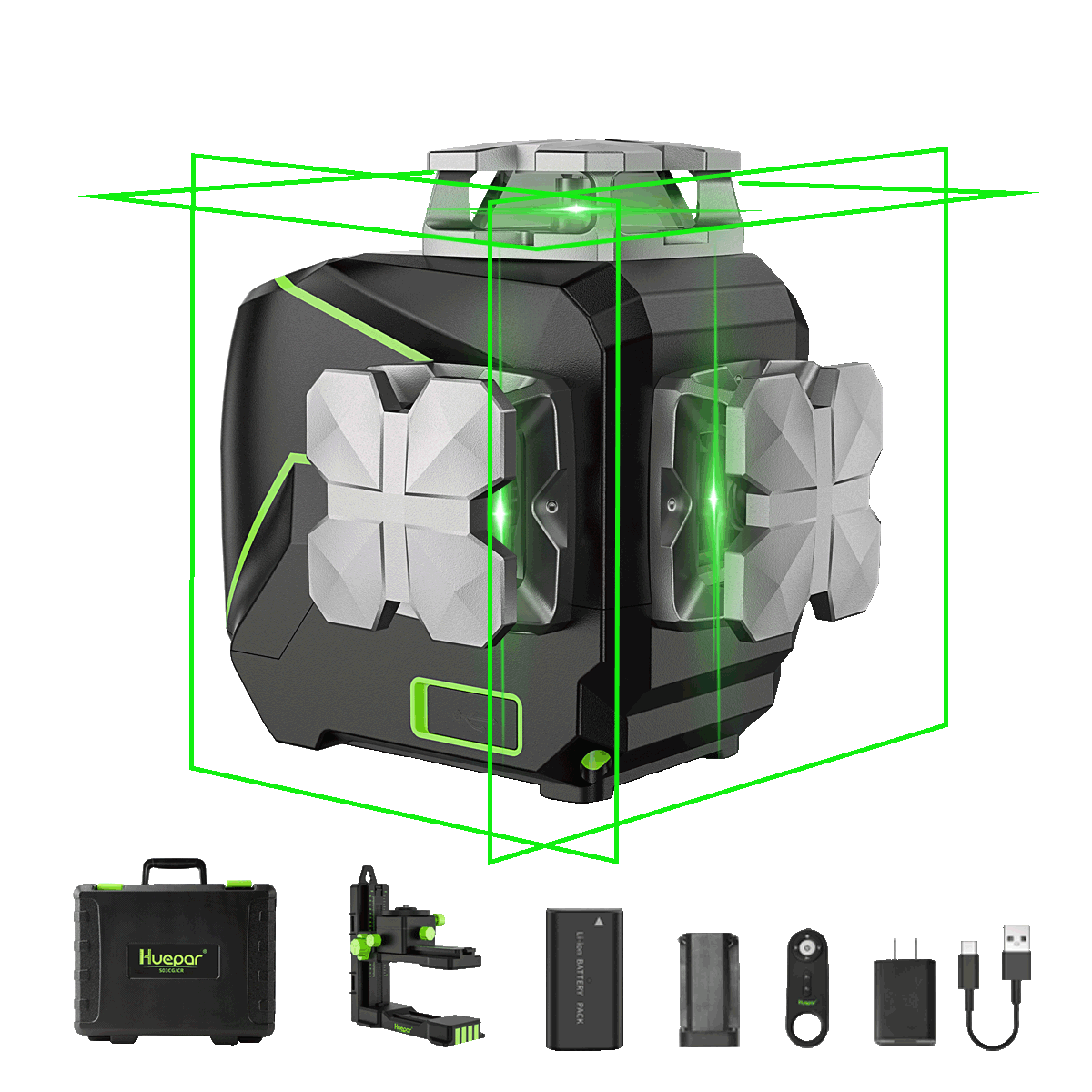

Huepar S03CG Laser Level

Huepar S03CG Laser Level


Regular price $246.65
Regular price $246.65 Sale price $274.06
- $27.41 % Sold out

Huepar S03CG Laser Level

Huepar S03CG Laser Level

check_circle Tax included, shipping calculated at checkout.

Regular price $246.65
Regular price $246.65 Sale price $274.06
Sold out

✅ LIMITED DEALS

🔥 -10%
Sale ends in:
00
Days
00
Hours
00
Minutes
00
Seconds



Add Top Accessories

Learn which accessories are right for you >
Huepar LR8RG Line Laser Receiver

Huepar LR8RG Line Laser Receiver

$69.99
Huepar TPD14 - 56"/142CM Adjustable Tripod HUEPAR CA - Laser Level

Huepar TPD14 - 56"/142CM Adjustable Tripod

$69.99
Huepar LP36 - 12 Ft./3.7m Telescoping Pole HUEPAR CA - Laser Level

Huepar LP36 - 12 Ft./3.7m Telescoping Pole

$119.99

Expand Extended Warranty?

Learn more >

Huepar Care - 2-Year Official Warranty

$0.00

Huepar Care - 1 Year Extended Warranty

$29.99

17 in stock

Pay with Ease

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Trusted Delivery with UPS/Canada Post


add_shopping_cart

-

Ordered

local_shipping

- - -

Order Ready

redeem

- - -

Delivered

View full details

Overview

  • LCD DISPLAY&BLUETOOTH TECH: The laser level has an LCD screen to easily get the status of the battery, angle, pendulum, and pulse mode on the display. Bluetooth connectivity enables control the setup of the laser from across the room with Huepar App on the smartphone and remote control. The App and remote control can switch ON/OFF the laser lines and pulse mode, and select the laser planes. Huepar App also provides out-of-level alarm. The laser tool can connect two Bluetooth devices simultaneously.

  • MULTIFUNCTIONAL LASER TOOL: One 360° horizontal and two 360° vertical laser lines can be selected individually by separate H and V button on the keypad. With smart pendulum, the laser tool self levels and indicates out-of-level condition while pendulum unlocked. The line laser will beep when out of self-leveling range ±3.5°. Once pendulum locked, it switches to manual mode to lock lines for use at any angle. Pulse mode extends laser range up to 200Ft. with Huepar Laser Receiver LR-6RG/LR-5RG.

  • TRIPLE POWER METHODS&TYPE-C PORT: This 360 laser tool adopted large capacity Li-ion battery (can be purchased easily at local market) for extended run-time, or with 4 AA alkaline batteries. The Li-ion battery has a Type-C charging port to be charged separately and can also be charged by phone, laptop, power bank, car charger, etc. The included battery holder is for installing 4 AA batteries to use the tool. The laser tool can be used at job site by plugged in when taking out the battery.

  • MAGNETIC BRACKET&MOUNTING THREADS: Equipped with a magnetic bracket, the laser tool can be rotated at 360° randomly. The fine-tuning knobs on the bracket enable adjustment of the left and right position, front and back position within 2.16 in (5.5cm) , can also help adjust and lock the height within 3.74 in (9.5cm). The magnetic bracket offers 1/4"-20 and 5/8"-11 mount threads to suit different tripod threads. The laser tool also has 1/4"-20 mount thread to suit for tripods or pole mount.

  • DURABLE DESIGN&PACKAGE CONTENTS: Over-molded metal laser window with IP54 water/dust resistance withstands tough job site conditions and can be removed and replaced with a screwdriver. The kit comes with a hard carry case bringing much more convenience to carry and store the laser tool. 12 months limited warranty up to 24 months if become a royal member through product registration.




S03CG 3D Green Laser Level with LCD Screen Specifications:

  • Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
  • Screen Type: LCD screen with backlight
  • Laser Wavelength: 505-520nm
  • Horizontal/Vertical Accuracy: ±1/9 inch at 33Ft.
  • Leveling/Compensation Range: ±3.5°
  • Working Distance (Line): 130Ft (100 LUX), 200Ft. with Huepar Receiver LR-5RG/LR-6RG
  • Power Source: Li-ion battery & 4×AA (LR6) batteries
  • Operating Time: with Lithium Battery: 7 hours with all laser beams on; with AA Batteries: 1.5 hours with all laser beams on
  • Package: Hard Carry Case
  • IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough
  • Mount Size: 1/4"-20 and 5/8"-11

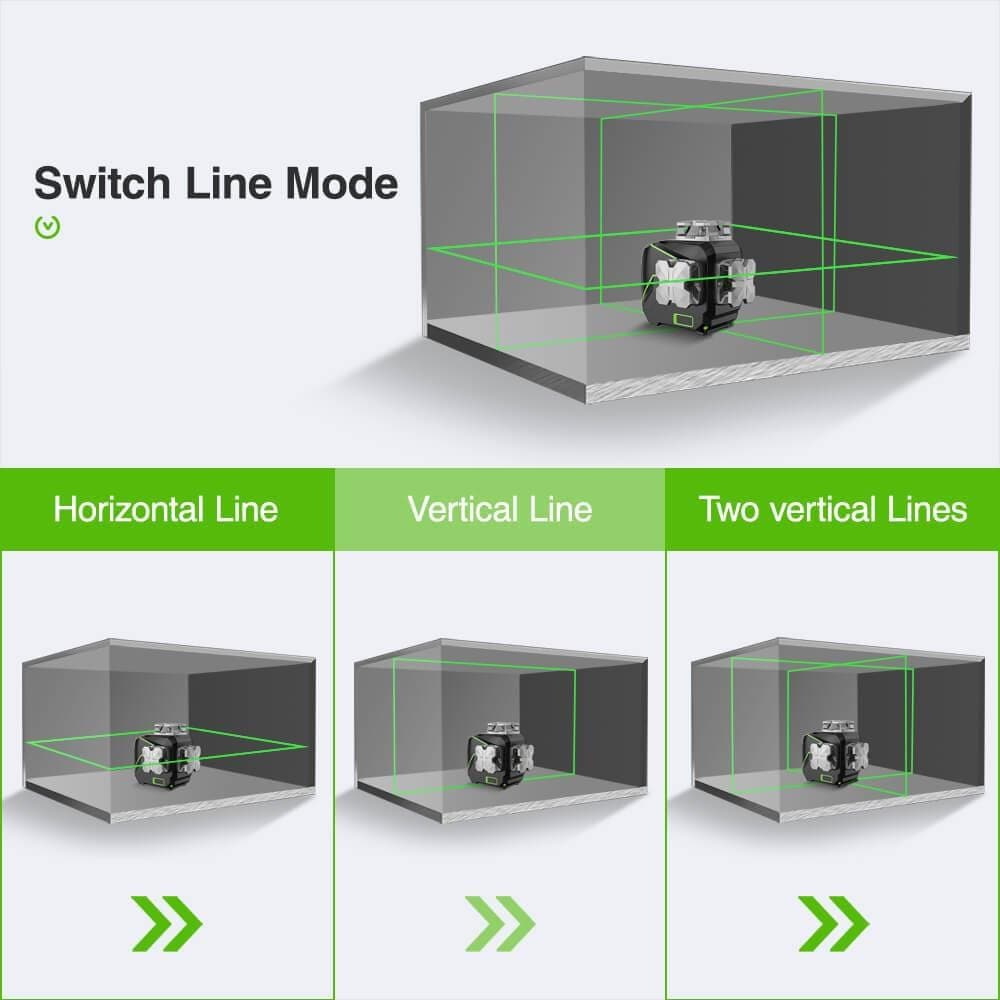

Lines Switching & Automatic Power OFF

  • Short press the "H" and "V" buttons on the keypad to switch the Horizontal and Vertical laser lines separately.

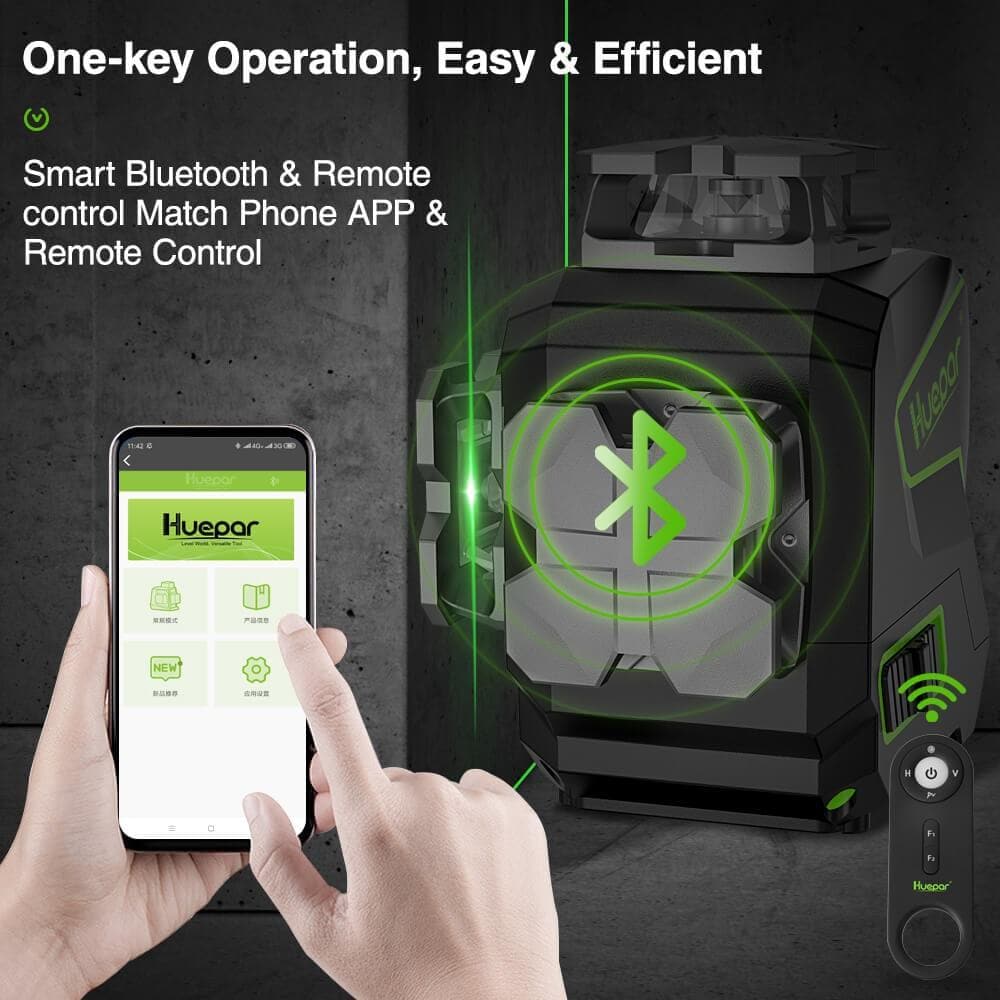

  • The Bluetooth remote control / Huepar APP enables to select three 360° laser lines individually at a distance up to 98Ft.
  • The laser line(s) can be temporarily turned OFF by the remote control/Huepar APP when need to leave for a while.
  • In manual mode, when all laser lines are switched off, the laser tool will shut OFF automatically after about 5 minutes of inactivity.

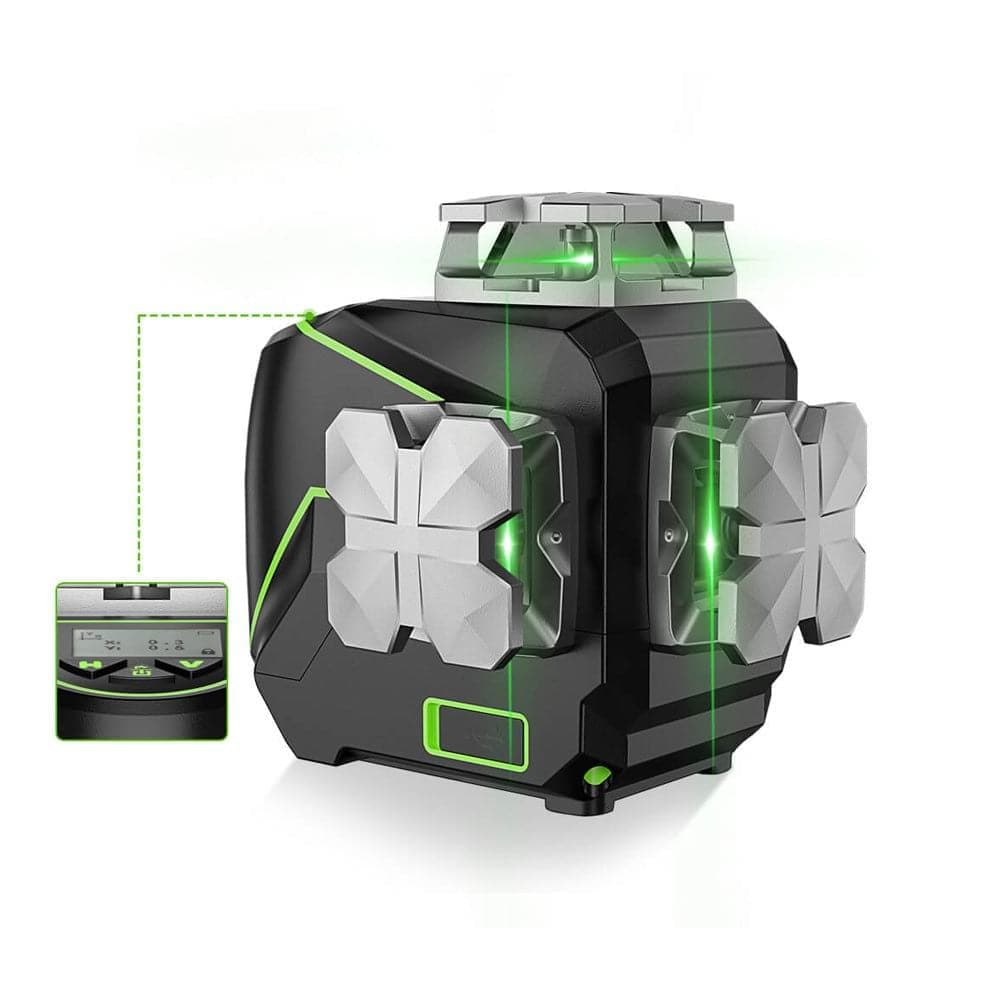

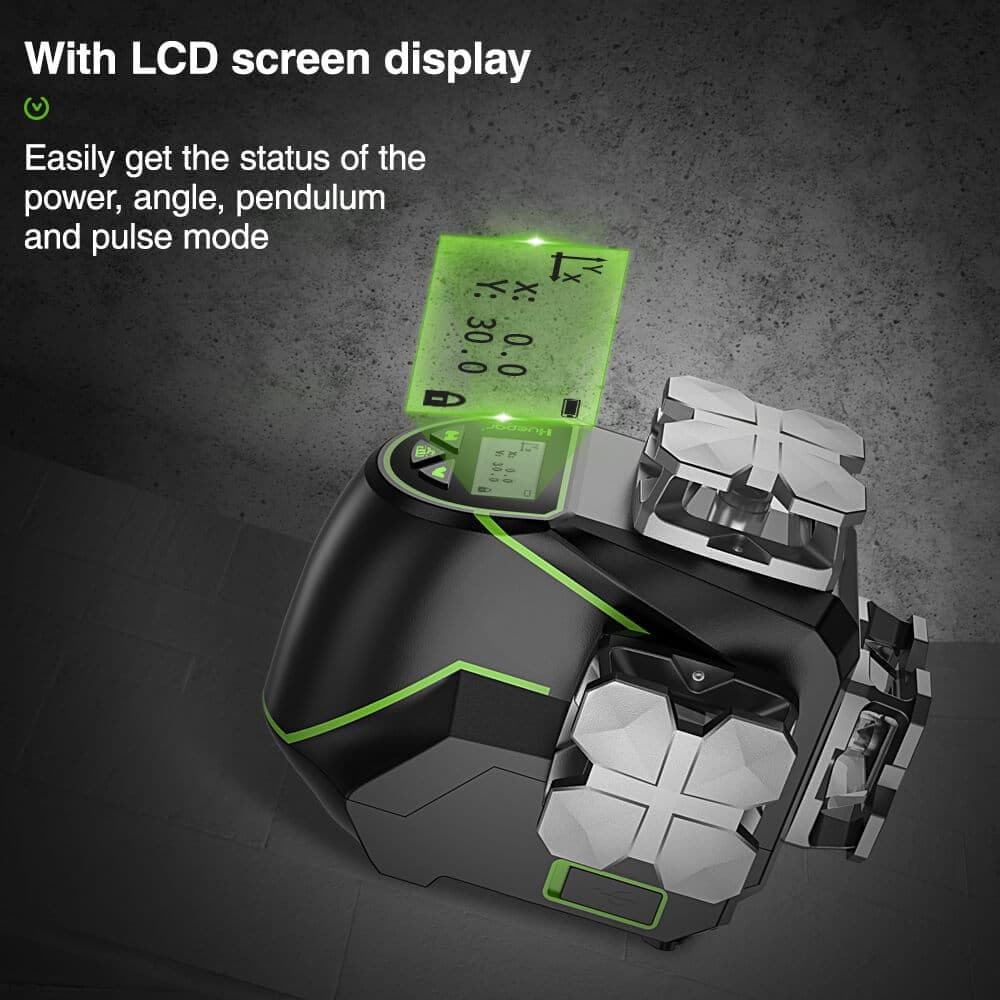

LCD Screen Display

  • Huepar S03CG laser level has LCD screen to easily get the status of the battery, angle, pendulum and pulse mode on the display.
  • Icons on LCD screen: battery level, pendulum locked&unlocked status, X axis tilt angle, Y axis tilt angle, X/Y axis tilt direction, pulse mode.

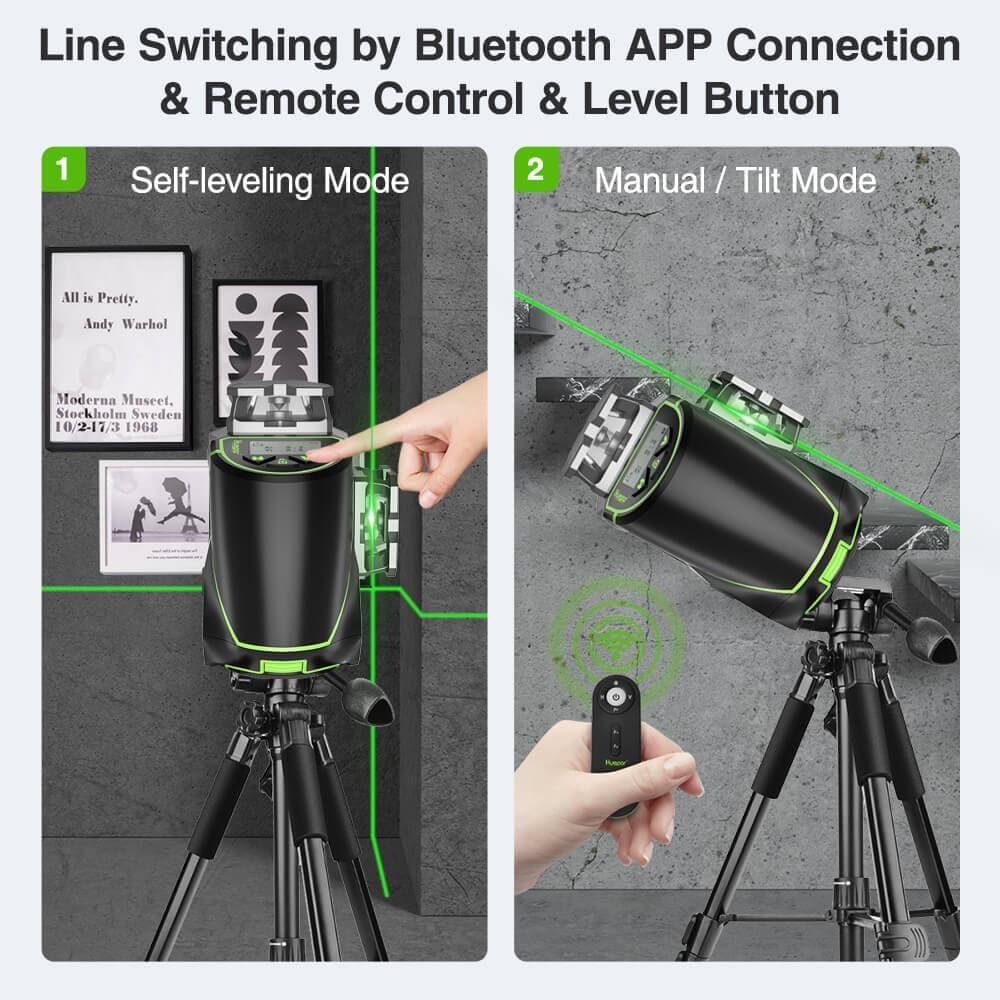

Self-leveling mode&Manual mode

Self-leveling mode:

  • Once the pendulum unlocked, the self-leveling mode is enabled. The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±3.5°.
  • With Bluetooth Tech, the locked icon will be displayed on Huepar APP and LCD screen.





Manual mode:

  • When the pendulum is in the locked position, the laser tool can be placed for use at any angle.
  • The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.
  • With Bluetooth Tech, the locked icon will be displayed on Huepar APP and LCD screen to remind user it is in manual mode now.






Pulse Mode

  • After power on, short press the power button to switch ON/OFF the pulse mode.
  • When connecting with Huepar APP and the Bluetooth Remote Control, the pulse mode can be switched ON/OFF via APP and remote control.

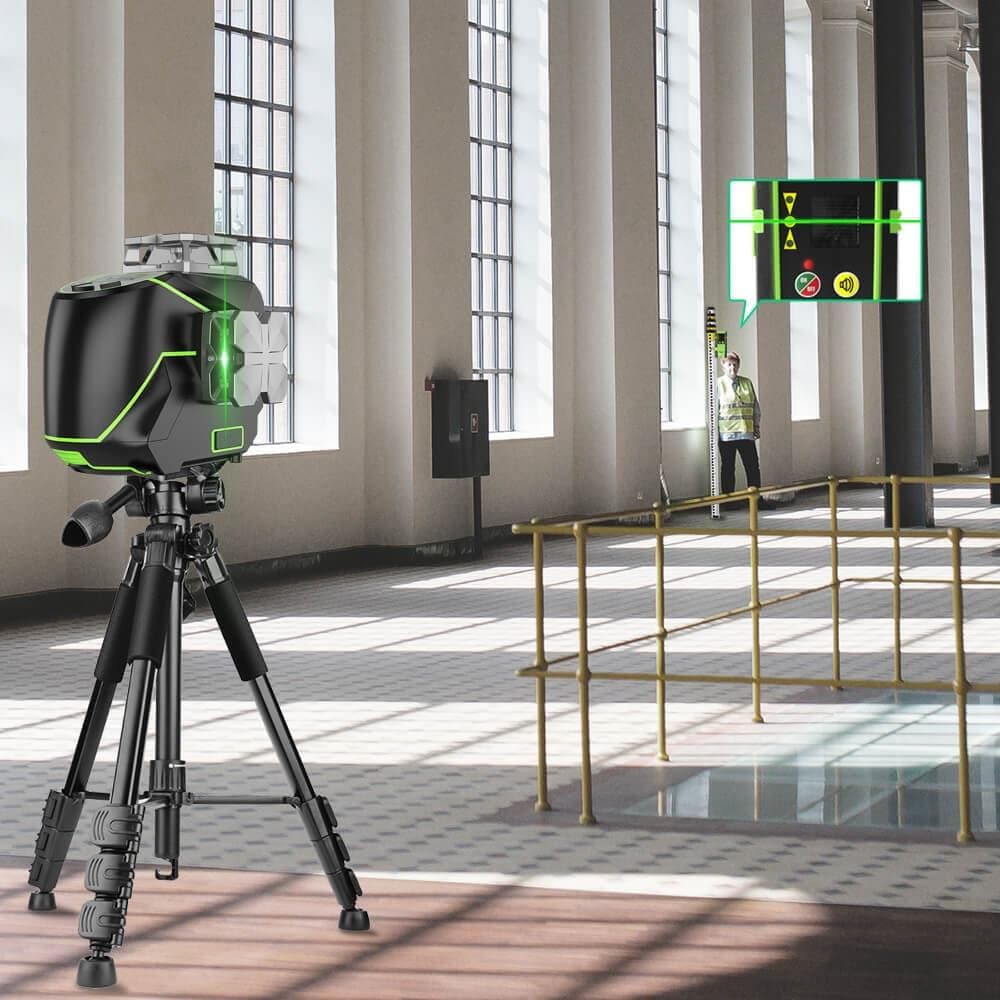

  • Pulse mode extends the working range up to 200Ft in brighter working conditions when using with Huepar Line Laser Receiver.
  • It is compatible with Huepar LR-6RG / LR-5RG Laser Detector only.
  • Note: Keep the pulse mode on when using with a receiver.





Magnetic Bracket&Mounting Thread

  • Equipped with a magnetic pivoting bracket, the laser tool can be rotated at 360° randomly.
  • The fine-tuning knobs on the bracket enable adjustment of the left and right position, front and back position within 2.16 in (5.5cm) , can also help adjust and lock the height within 3.74 in (9.5cm).
  • The graduations in both Inch and Metric on the bracket make the adjustment much easier.
  • The magnetic bracket offers 1/4"-20 and 5/8"-11 mounting threads to suit different tripod threads.
  • The laser tool also has 1/4"-20 mounting thread to suit for standard tripods or pole mounts.

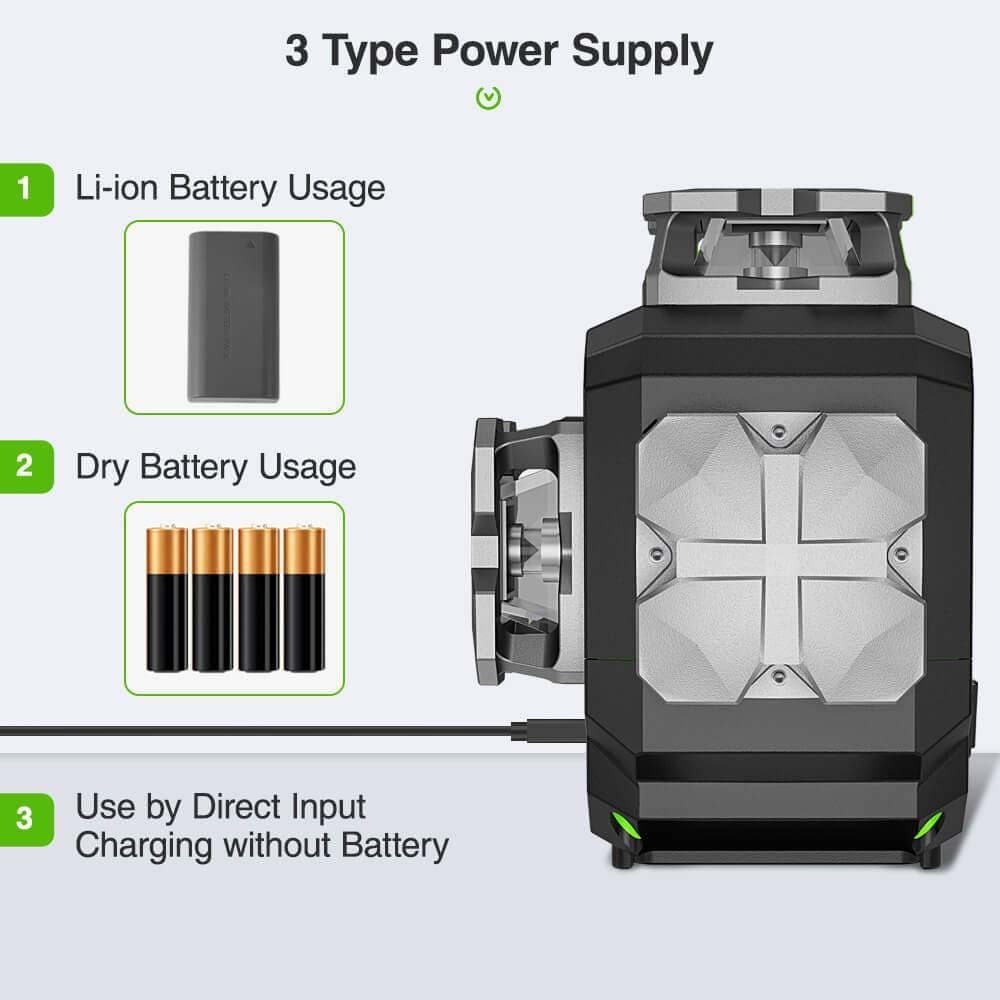

Triple Power Methods

  • This laser tool utilizes the included large capacity Li-ion battery which is compatible with Samsung SB-L110 battery.
  • The Li-ion battery comes with type-c charging port that can be charged by laptop, power bank, car charger, etc.
  • Huepar 360 laser level also comes with a holder for installing 4 AA batteries to use the tool.
  • The 12 lines laser level can be used at the work site by plugged in directly when taking out the battery.

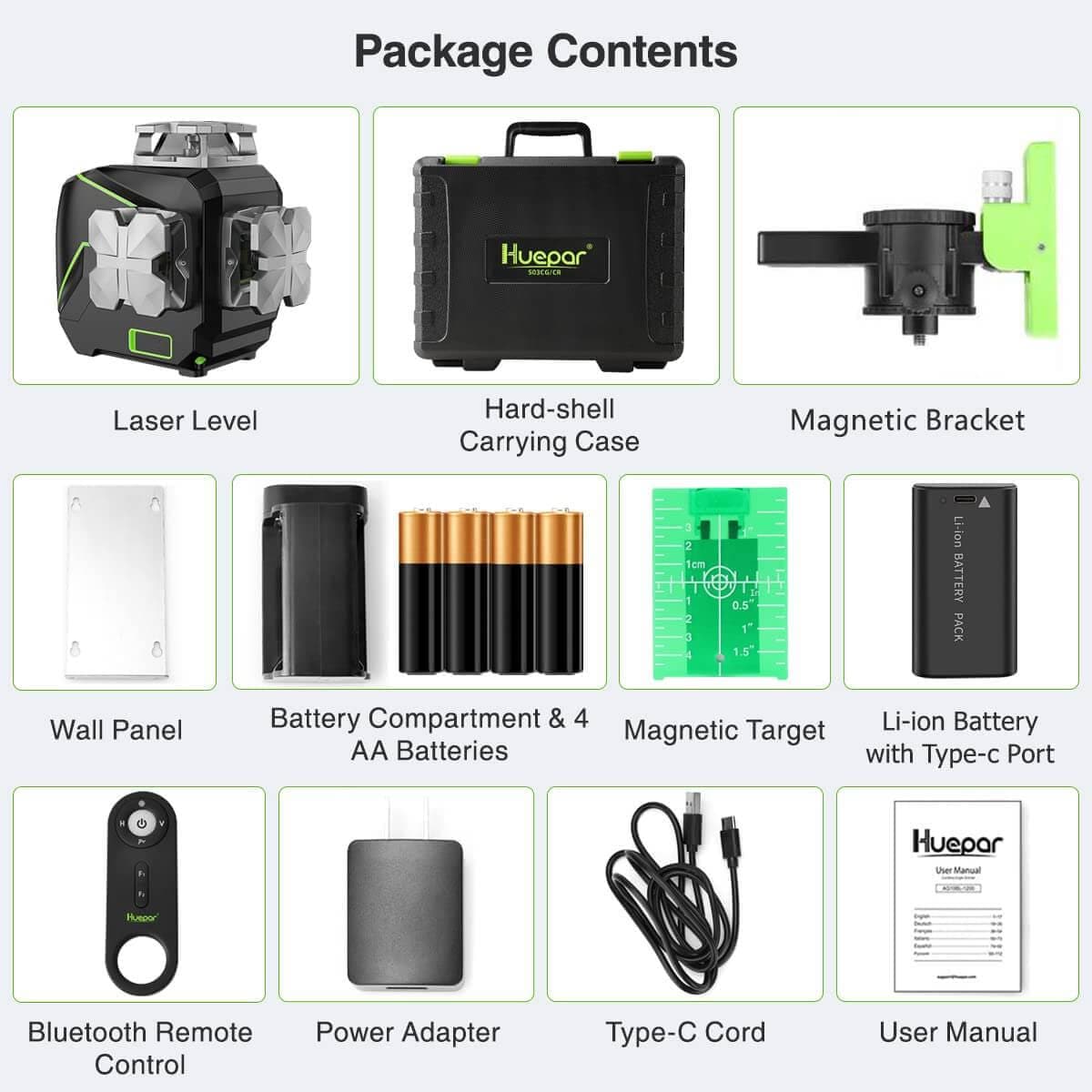

Package Contents:

  • 1 x Huepar S03CG 3D Cross Line Laser Level
  • 1 x Bluetooth Remote Control
  • 1 x Rechargeable Li-ion Battery
  • 1 x Power Adapter&1 x Type-C cord
  • 4 x AA (LR6) Batteries&1 x AA Battery Holder
  • 1 x Magnetic Bracket&1 x Steel Sheet
  • 1 x Laser Target Plate
  • 1 x User Manual
  • 1 x Hard Carry Case
