Huepar PV10+ Fine-tuning Bracket

Specification of Huepar PV10+ Adjustable Base:

Magnetic Pivoting Bracket with Dedicated Window Adapter:

• Heigth Adjustment Graduations: cm / inch
• Male Thread for Laser Level: 1/4"-20
• Female Thread for Tripod: 1/4"-20 and 5/8"-11
• The length of the male thread to the side of the bracket: 3-8.5cm
• Load capacity: 3KG
• Net Weight & Size: 458g , 17.5 x 15.5 x 8.5 cm
• Adjustment: 360-degree horizontal rotation, X-axis (adjust the horizontal position left and right), Y-axis (adjust the horizontal position front and back), Height adjustment.
• The fine-tuning knob of the adapter helps adjusting pitch angle.
• This Huepar laser level adapter only compitable with: Huepar 901CG/R, 902CG/R, 903CG/R, GF360CG/R, AK360G/R, B02CG/R, B03CG/R, B21CG/R.

Multi-functional Auxiliary Back Clip:

• The opening size of the clip: 1-5cm
• The size of the steel sheet: 14 x 5.5cm
• Net Weight & Size: 242g , 18.5 x 8 x 5.5 cm
• Adjustment: Opening size of clip, adjust the vertical angle of the laser level bracket against the wall in to 90-degree

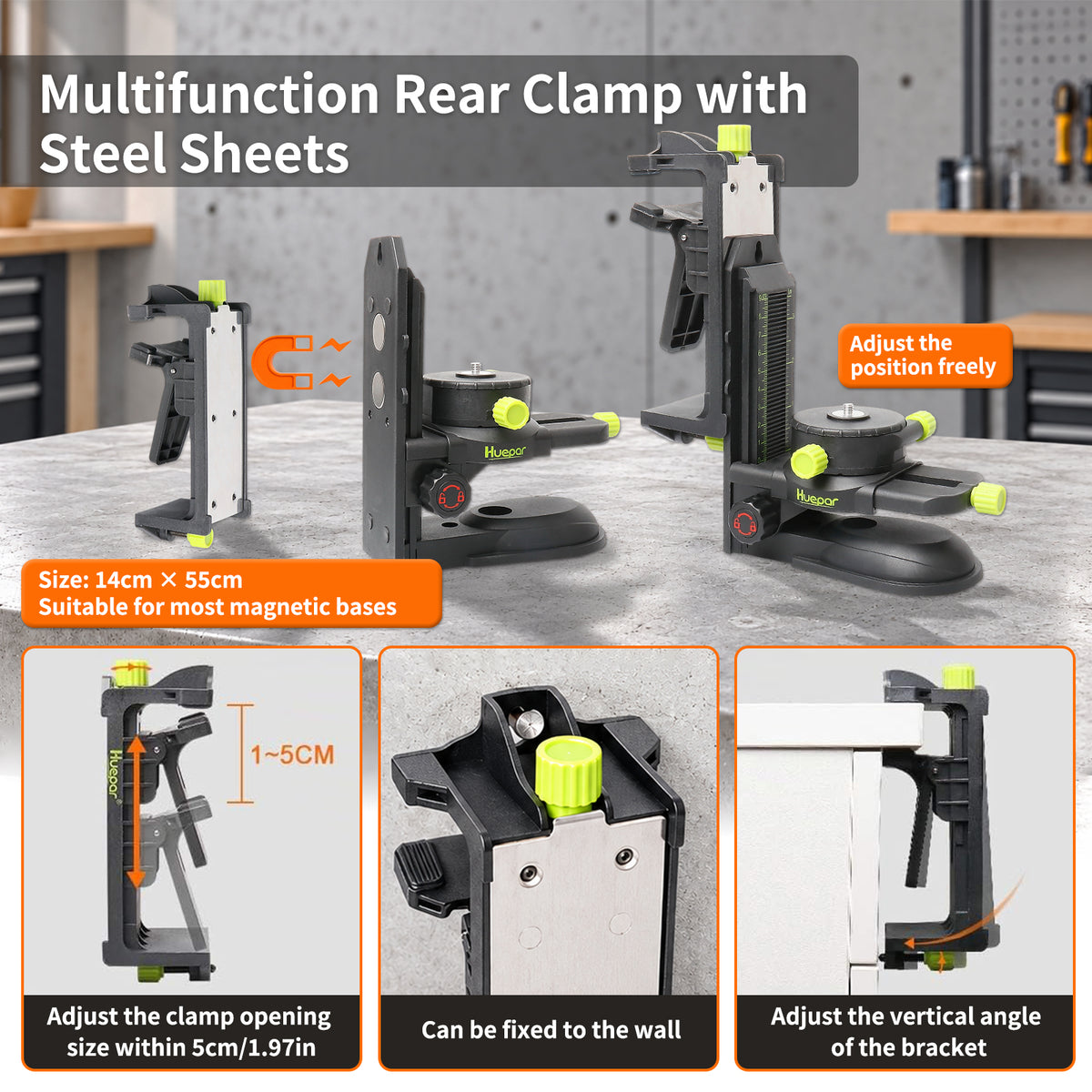

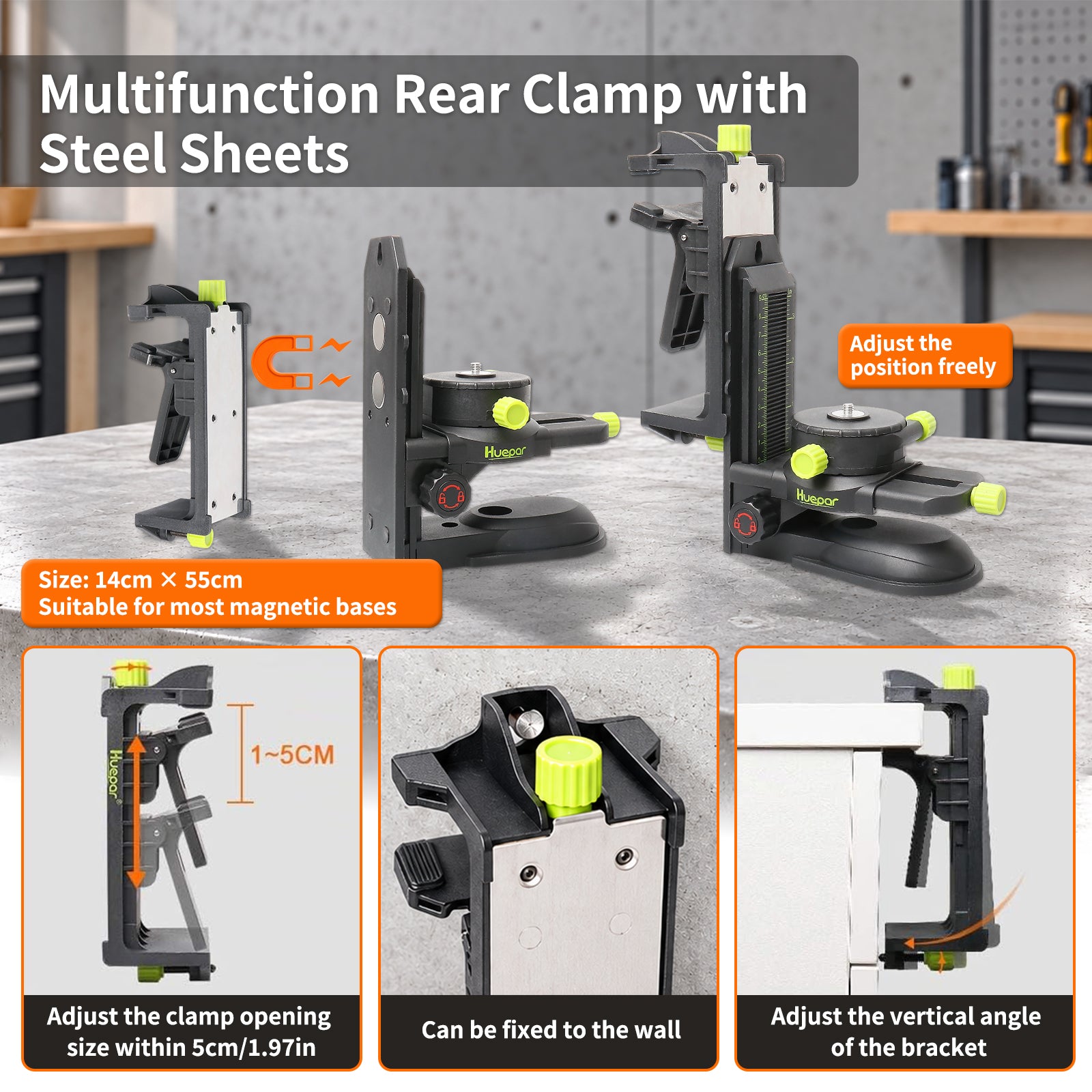

Multi-functional Adjustable Auxiliary Back Clip

• The back clip is compatible with most magnetic bases on the market, increasing the adsorption force of the magnets and stability.
• The opening size of the clip can be adjusted, offers the ability to mount to any object up to 5cm thick.
• The vertical angle against the wall can be adjusted by the fine-tuning knobs as well as the opening size of the clip.
• A nail hole in the clip enables to be fixed firmly on the wall.
• The size of the steel plate of the back clip is 5.5cm (W) x 14cm (L).

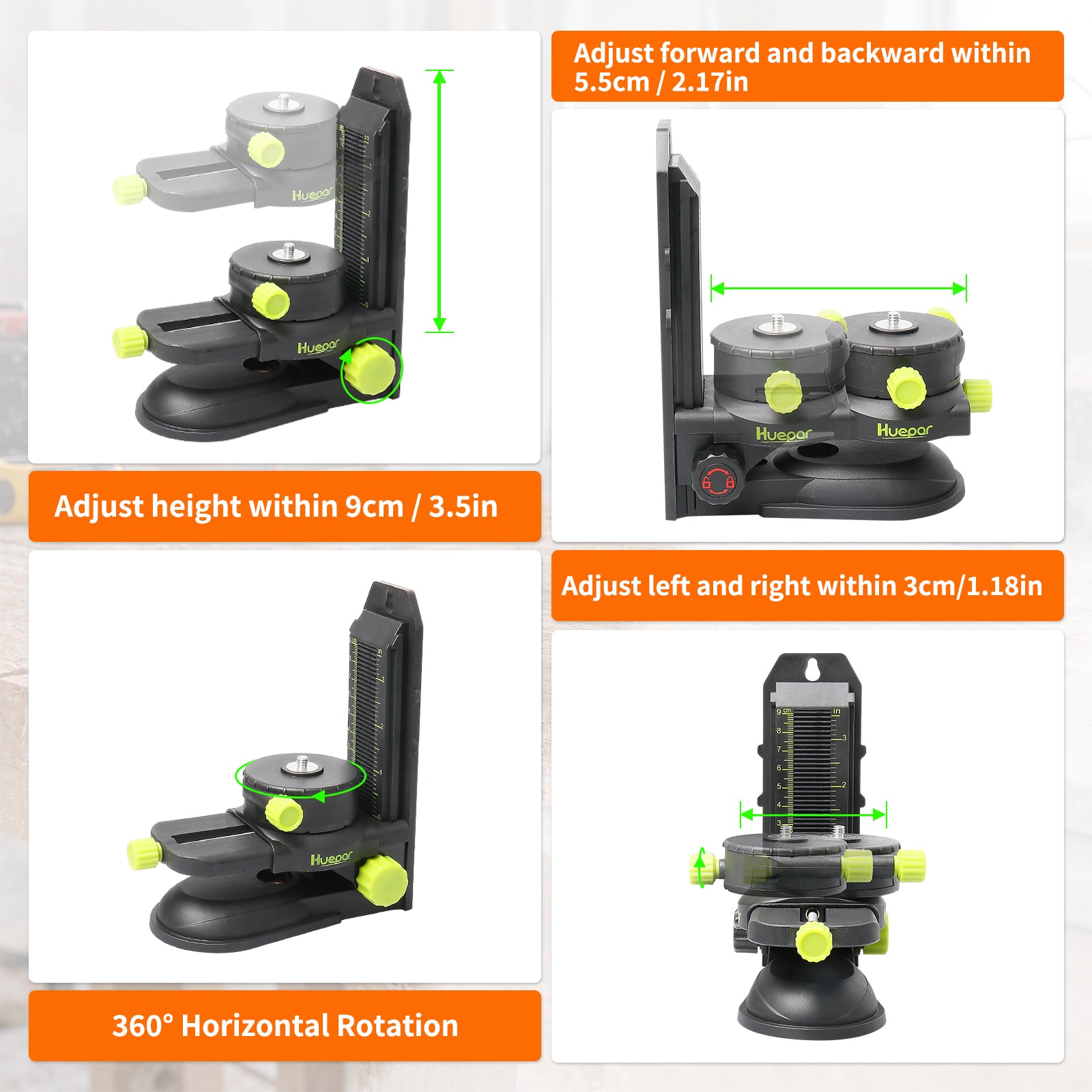

Multidirectional Adjustable Bracket

• Adjust the height within 9 cm. A locking knob enables to fix the working height.
• The graduations are marked in inches and centimeters for easy readouts.
• Adjust the position front and back within 5.5cm to suit for laser tools of different size.
• Make 360° adjustments clockwise or counterclockwise.
• Adjust the horizontal position left and right within 3cm.

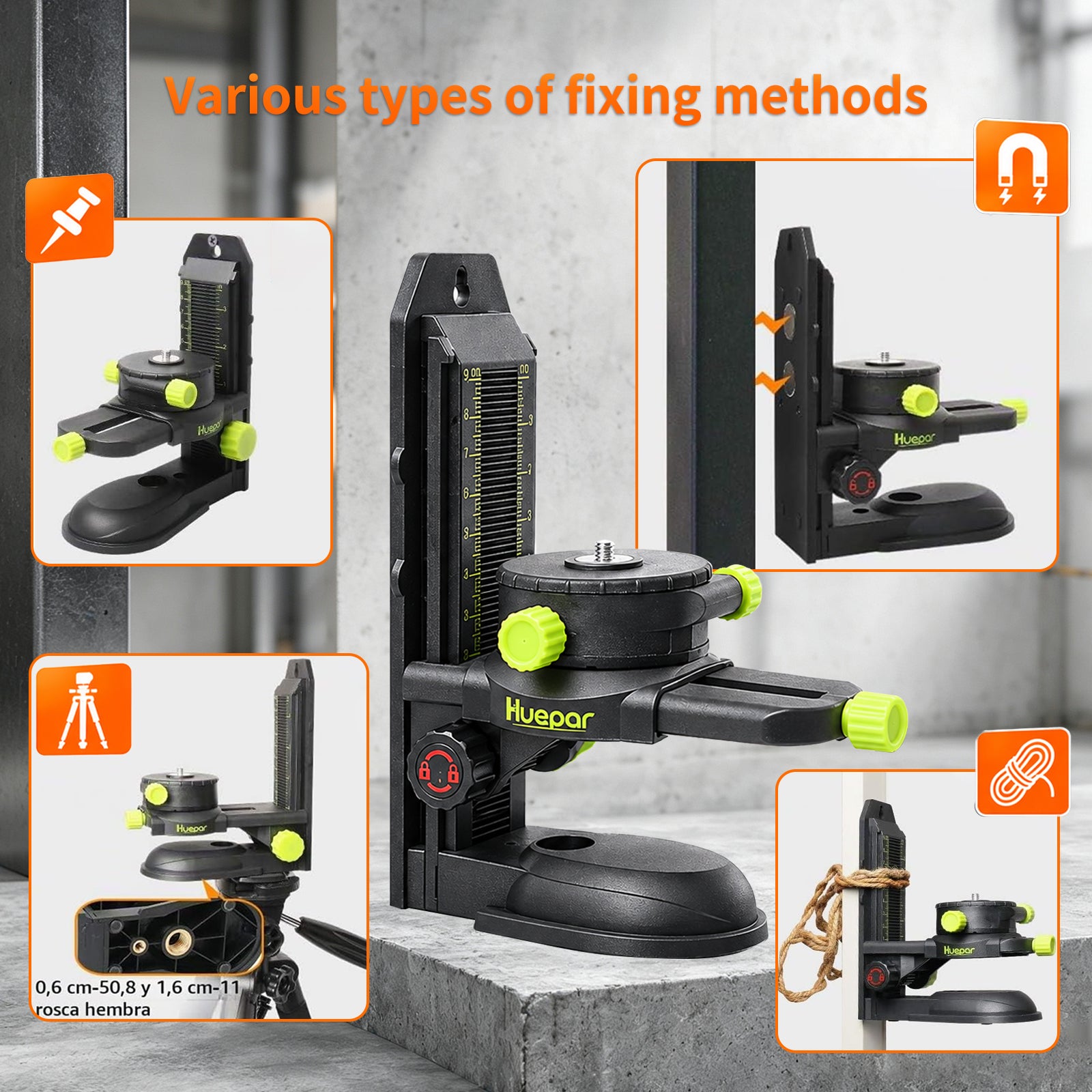

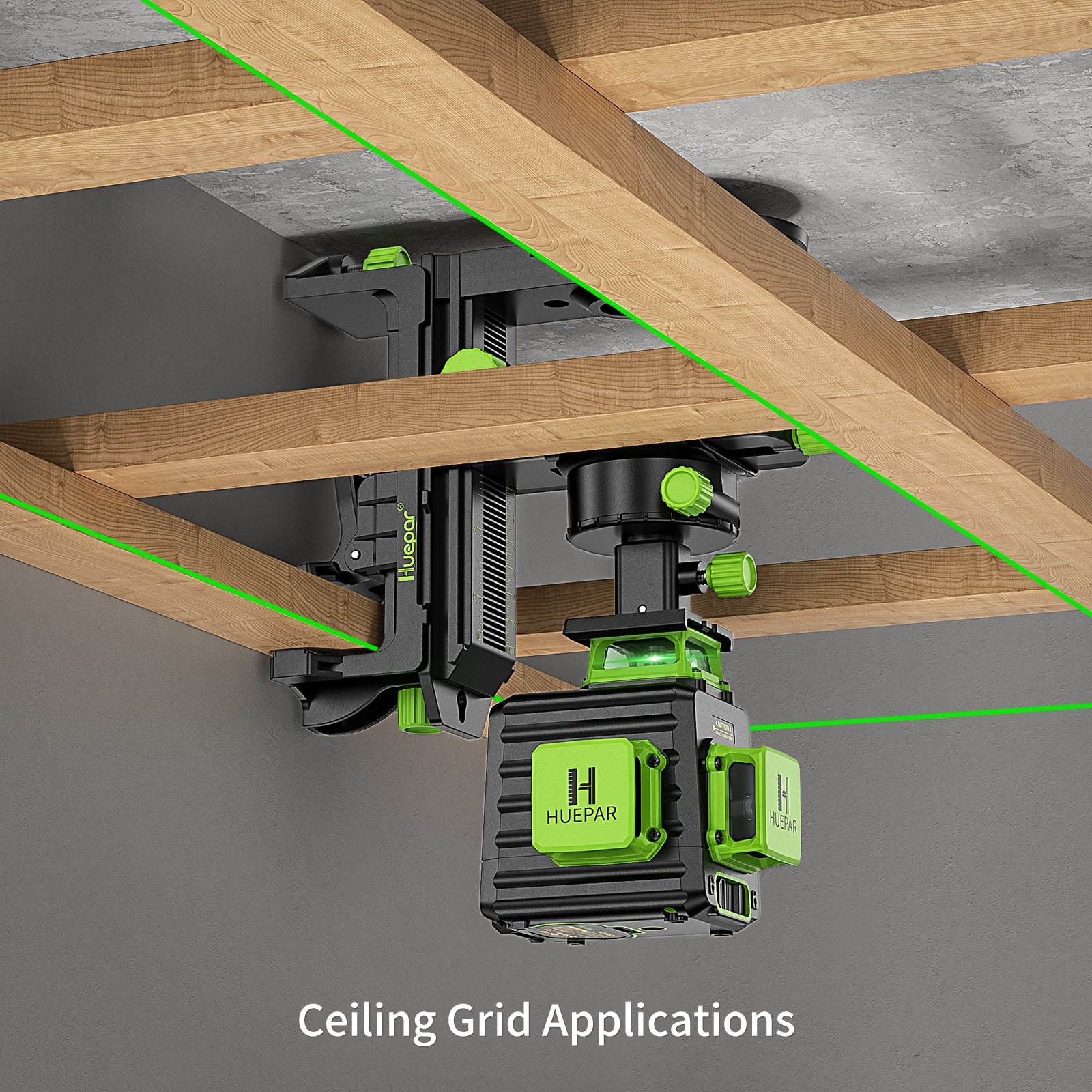

Multiple Installation Methods of the Bracket

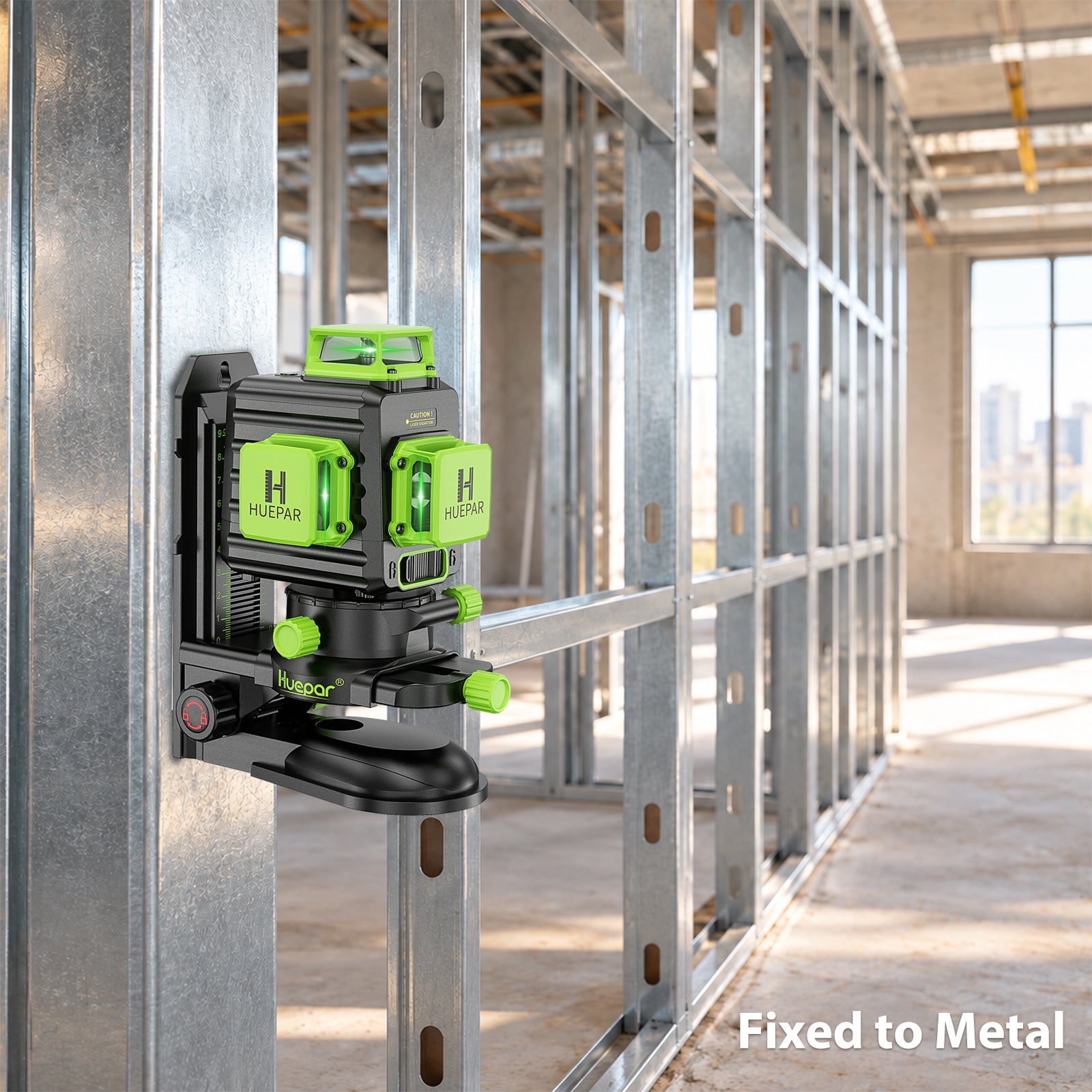

• With the strong magnets, the bracket can be attached to the back clip at any height or other metal surfaces.
• 1/4"-20 and 5/8"-11 female thread makes it possible to be attached to a tripod or laser pole.
• Slots for screws, nails, raceways or optional straps are designed to make the installation much firmer.
• The groove design on both sides of the back of the bracket can be fixed to a rope.

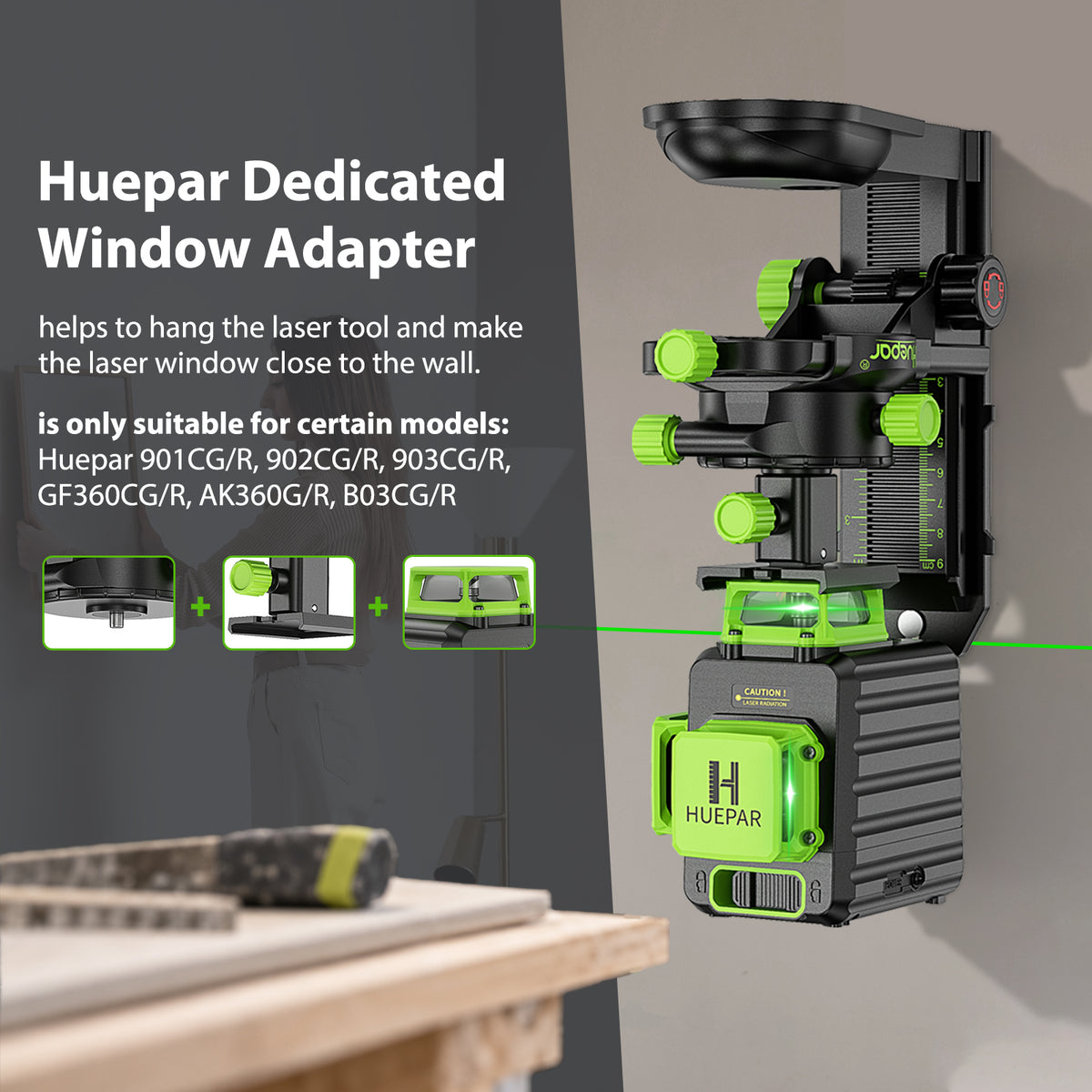

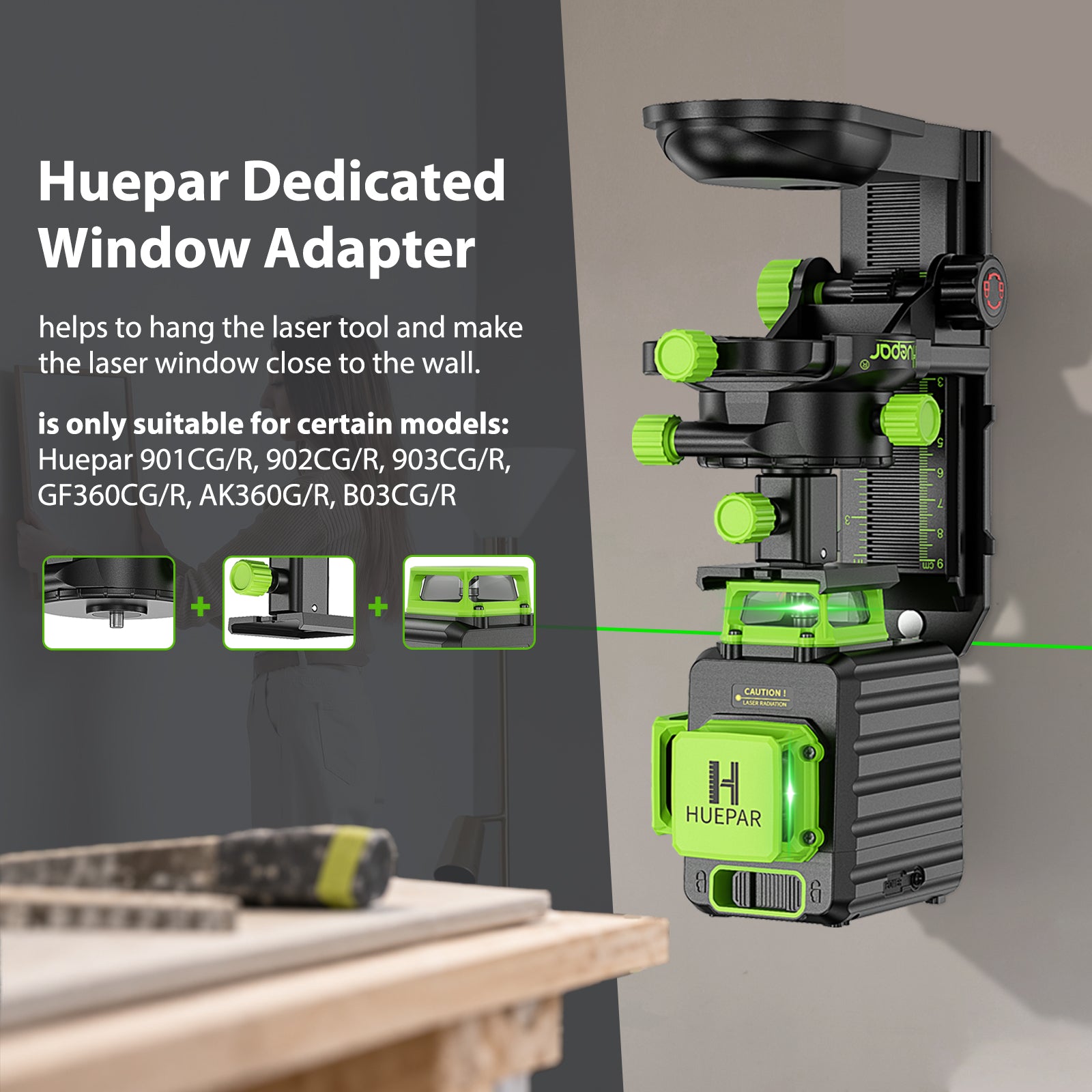

Huepar Dedicated Laser Window Adapter

• Huepar Dedicated Laser Level Window Adapter
• A dedicated adapter included helps to hang the laser tool, bringing the laser window closer to the wall. At this time, the bracket can be inverted or flipped sideways.
• The fine-tuning knob on the adapter is for adjusting pitch angle.
• Due to the special design of the groove, Huepar adapter is only suitable for certain models:
• Huepar 901CG/R, 902CG/R, 903CG/R, GF360CG/R, AK360G/R, B02CG/R, B03CG/R, B21CG/R.

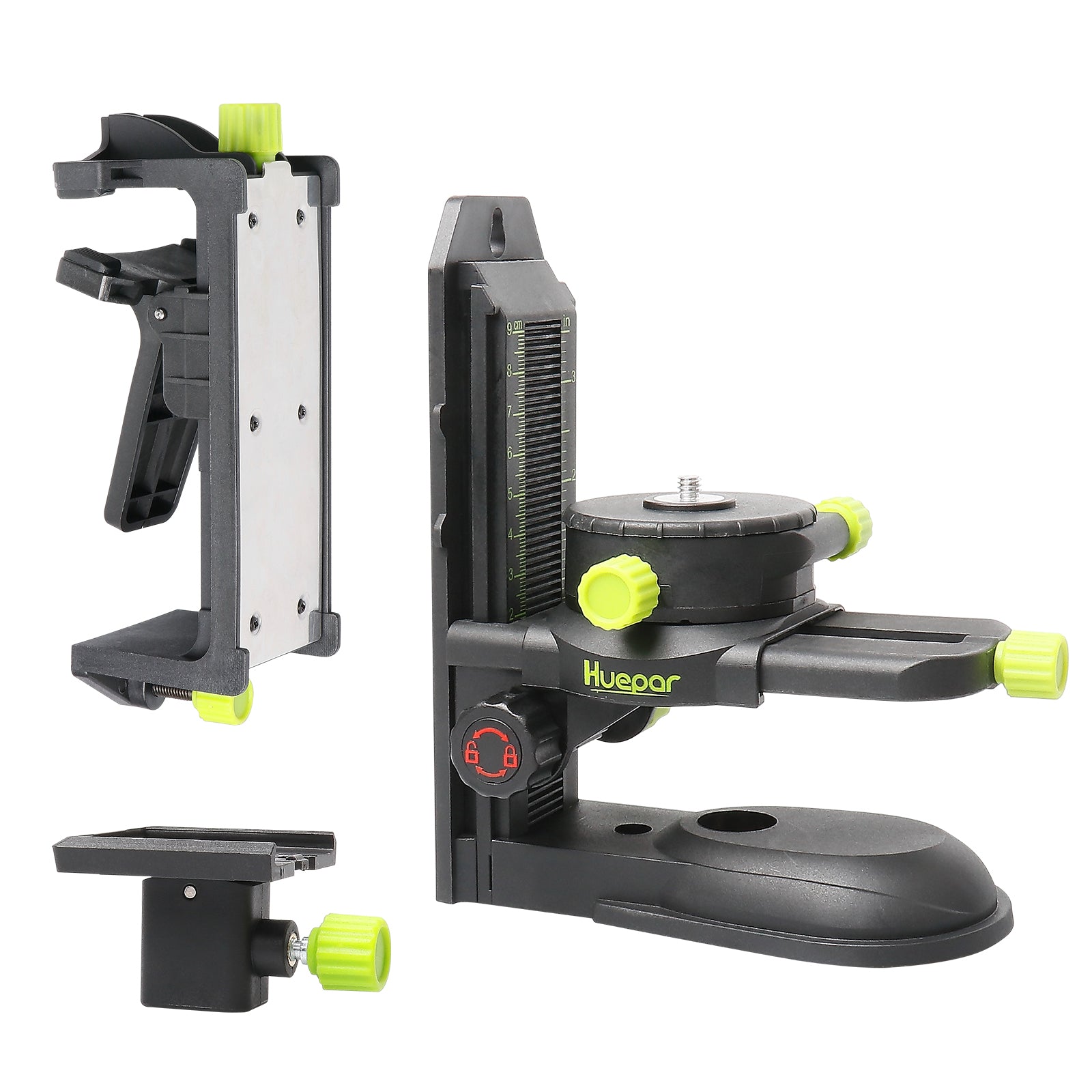

Package Included:

• 1 x Magnetic Pivoting Bracket
• 1 x Multi-functional Auxiliary Back Clip
• 1 x Huepar Dedicated Laser Window Adapter
• 1 x Operation Instruction
