Huepar B011G Laser Level

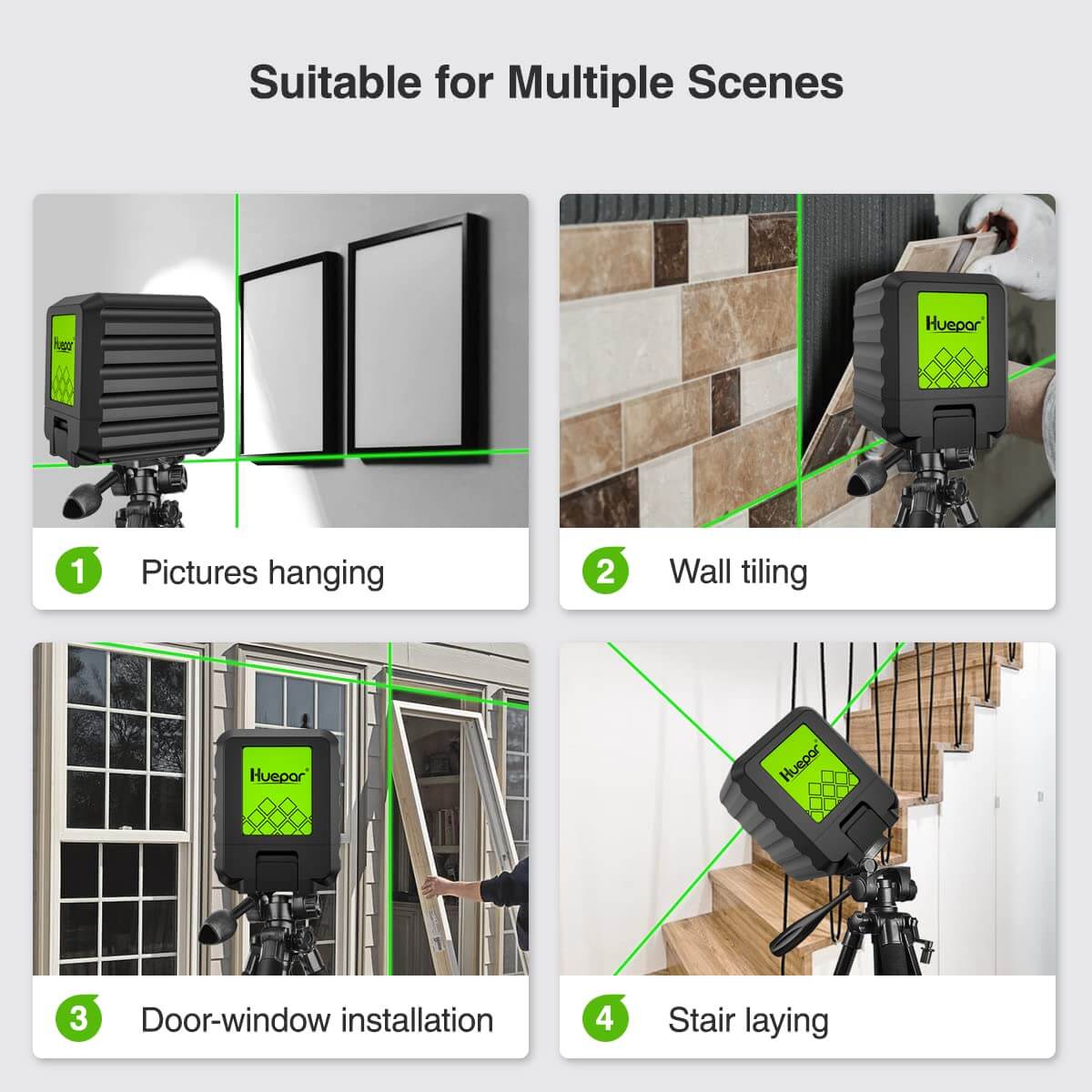

• GREEN CROSS LINE LASER - Huepar cross line laser level adopted advanced green laser technology. Green laser is 2 times brighter than red laser with the same light source. This laser tool projects one 110° Horizontal and one 110° Vertical line for wide applications of leveling and alignment tasks. Huepar cross line laser tool is great for installing photo, door, window, or furniture carpentry, hanging wallpaper, etc.

• SELF-LEVELING & MANUAL MODE - Self-leveling within 4°, laser beams will blink continuously when the tool is beyond self-leveling range. Once pendulum locked, the cross lines will be locked in position for use at any angle.

• COMPACT AND EASY OPERATION - B011G laser level is compact and lightweight for easy gripping, it is the most handy and professional laser tool you can think of to carry out work. It is simple to use with only one operation button, which is easy to switch modes and guarantee fast and error-free work, making your life more efficient and simple.

• HIGH PRECISION - The level tool projects cross laser line with an accuracy of 1/9 inch at 33 feet and full brightness of optimal visibility. Self-leveling time is less than 3 seconds. 1/4"-20 thread mounts allows you to use it with a tripod (not included) and adjust its height easily to make measuring flexible and stable.

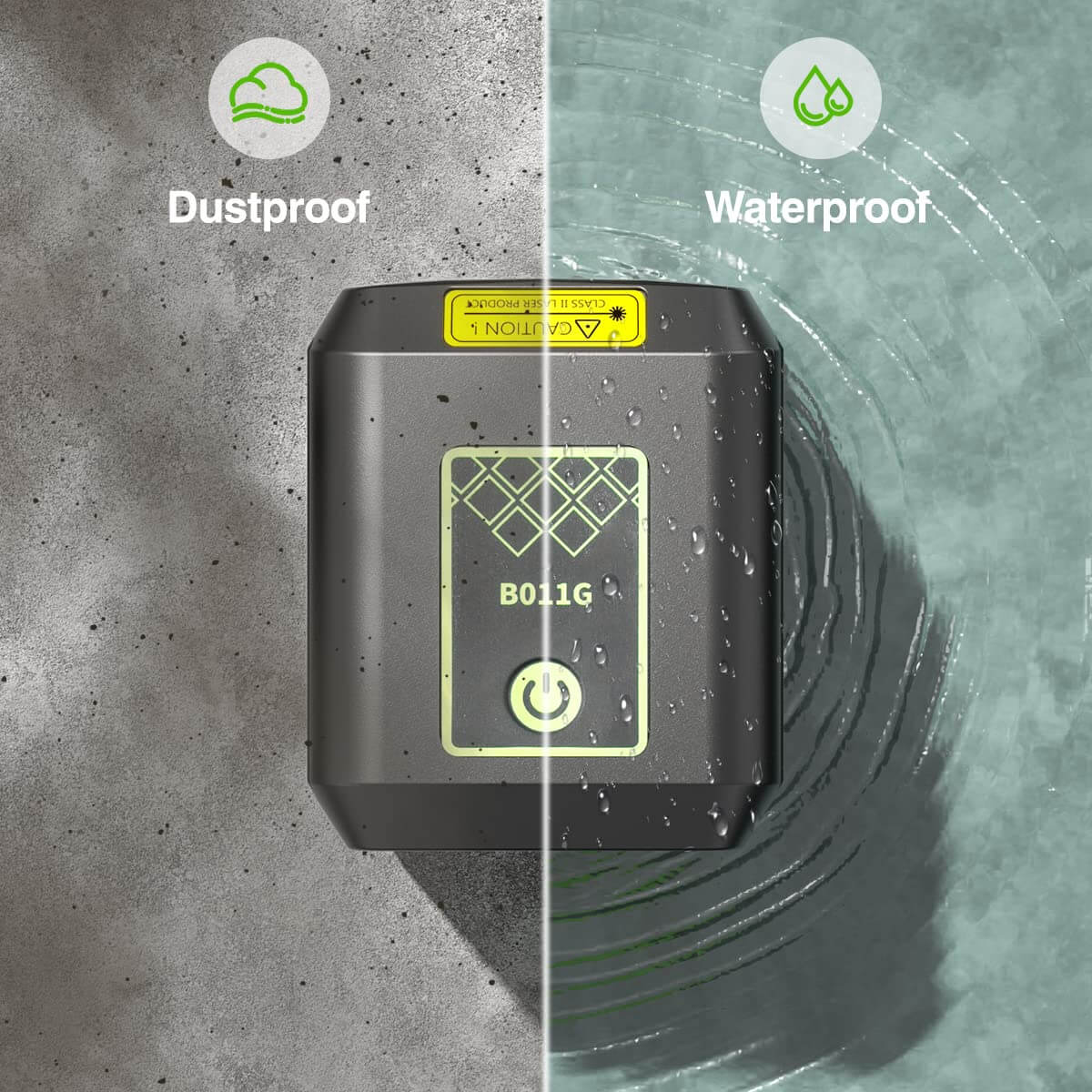

• DURABLE AND WIDELY USED - This self-leveling line laser reaches IP54 protection grade, it is waterproof, dustproof, shockproof, wear resistant, impact resistant, and can bear cold and high temperature. You can think of to carry out work for all trades from drop ceiling installation, lighting fixtures, photo frames aligning and wall tiling down to floor tiling etc.

Huepar has a team of professional engineers and designers. Constantly promote and provide products and services for high-end markets, pursuing technological innovation and quality commitment.

Huepar B011G self-leveling laser level Specifications:

• Laser Class: Class 2 (IEC/EN60825-1/2014), output power <1mW
• Laser Wavelength: 505-520nm
• Leveling Accuracy: ± 1/9 Inch at 33 Feet
• Leveling/Compensation Range: 4°±1°
• Working Distance: 100ft (100 LUX)
• Operating Time: 6 hours with all laser beams on

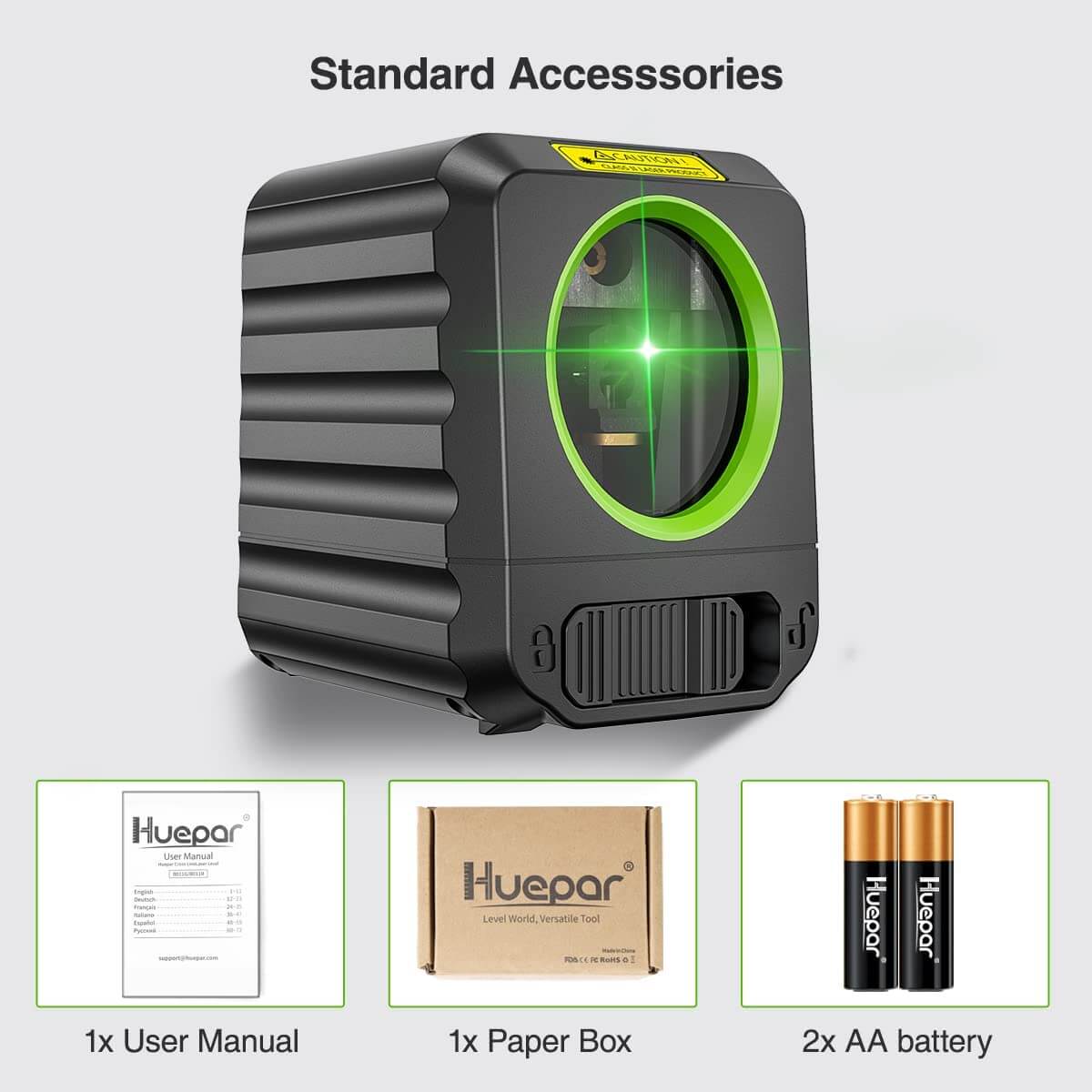

• Power Source: 2×AA battery (LR6), it is recommended to use a large capacity (rechargeable) battery.
• Operation Temperature Range: -10℃-＋50℃
• Storage Temperature Range: -20℃-＋70℃

WARNING: Avoid direct exposure of the laser beam to the eyes.

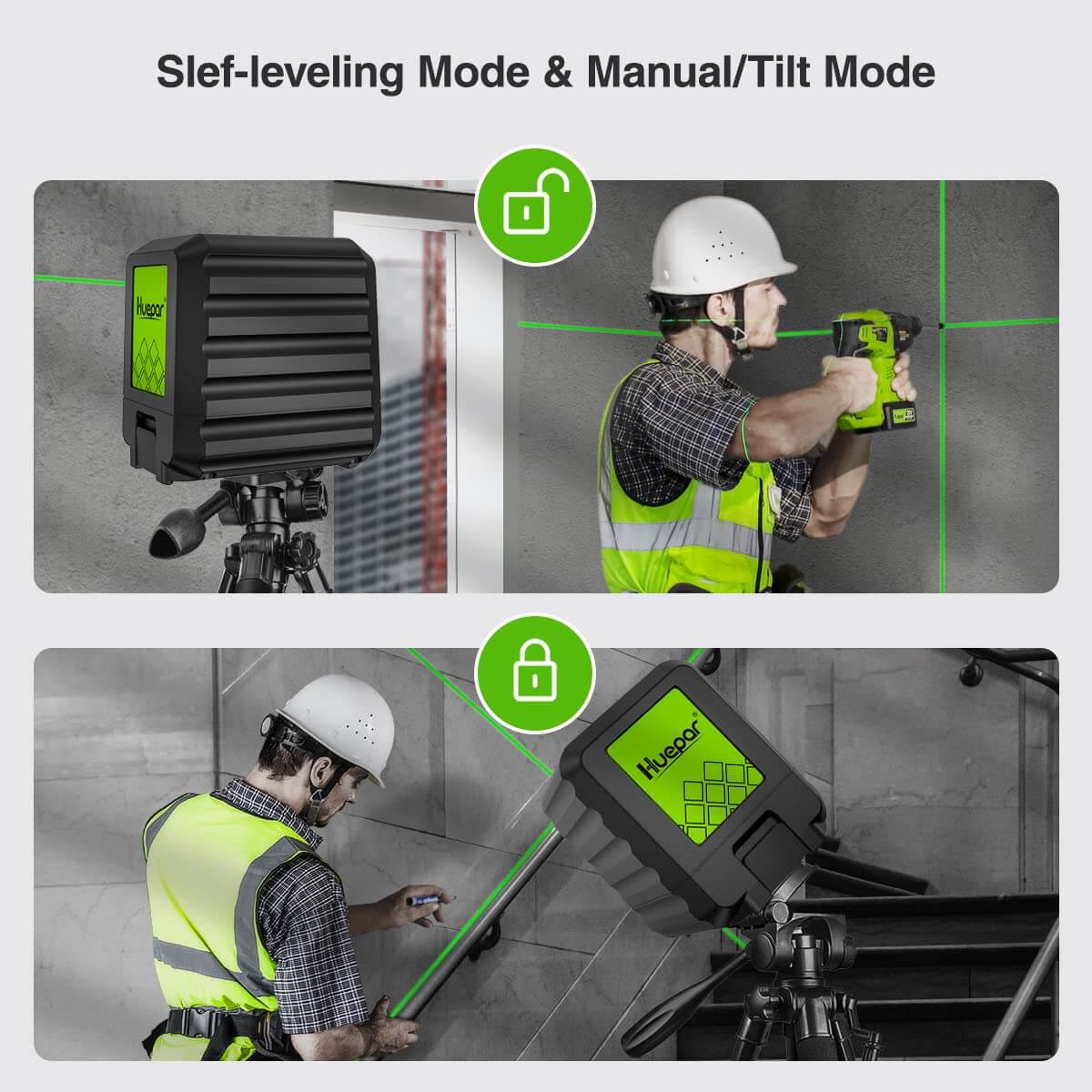

Self-leveling mode & Manual mode

Self-leveling mode:

When the laser tool is switched to the unlocked position, self-leveling mode is on. The laser beam will blink continuously at 2Hz when the tool is beyond self-leveling range (4°±1°).

Manual mode:

When the pendulum lock is in locked position, you can place the laser tool at various angles to project non-level straight lines. The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.

Compact and Handy

Huepar B011G laser level is compact and lightweight for easy gripping, it is the most handy and professional laser tool you can think of to carry out work.

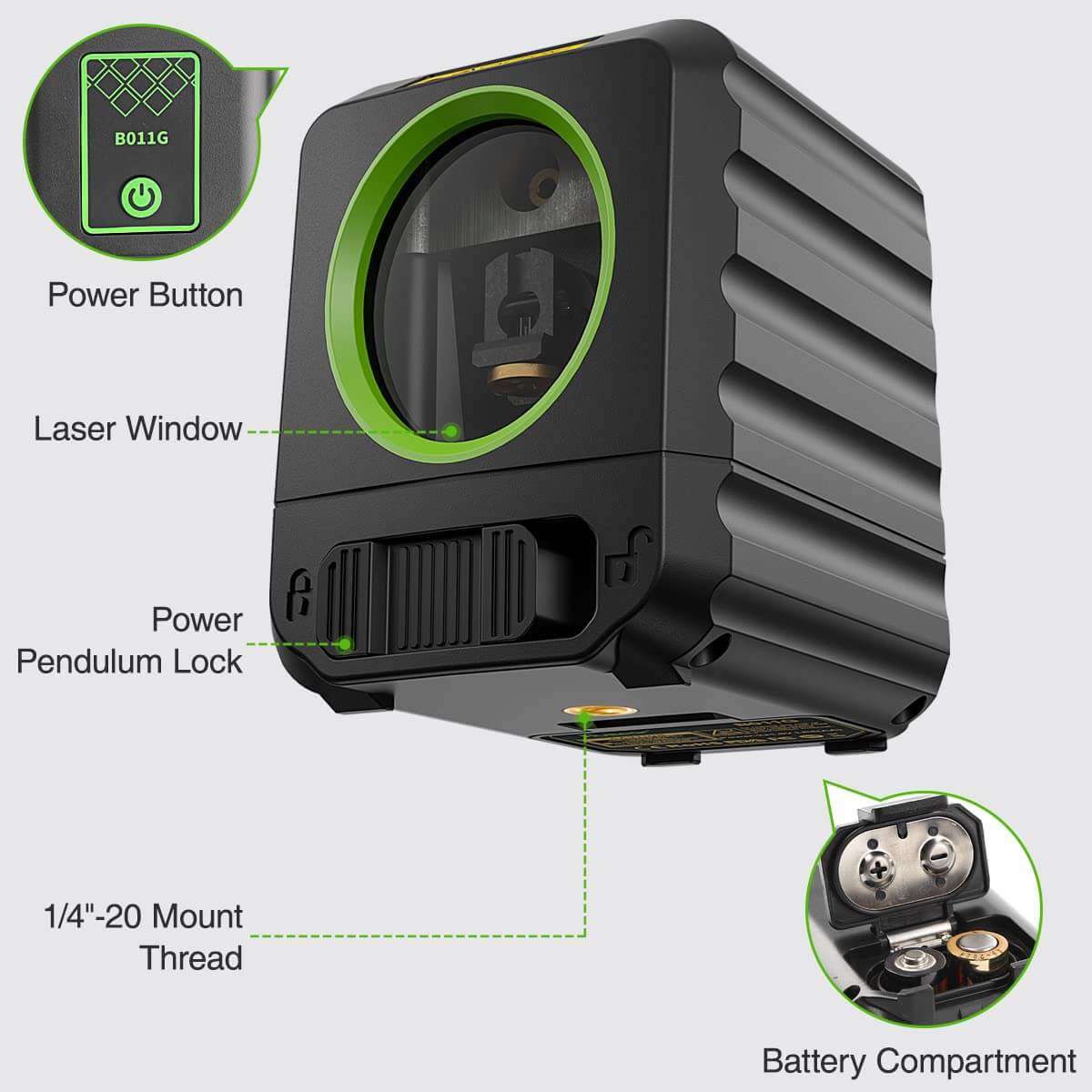

1/4" Threaded Mount

The B011G cross line laser comes with 1/4"-20 female thread, allowing it to be attached to tripod or other mounting bases for positioning, and adjust its height easily to make measuring flexible and stable.

Superior Visibility

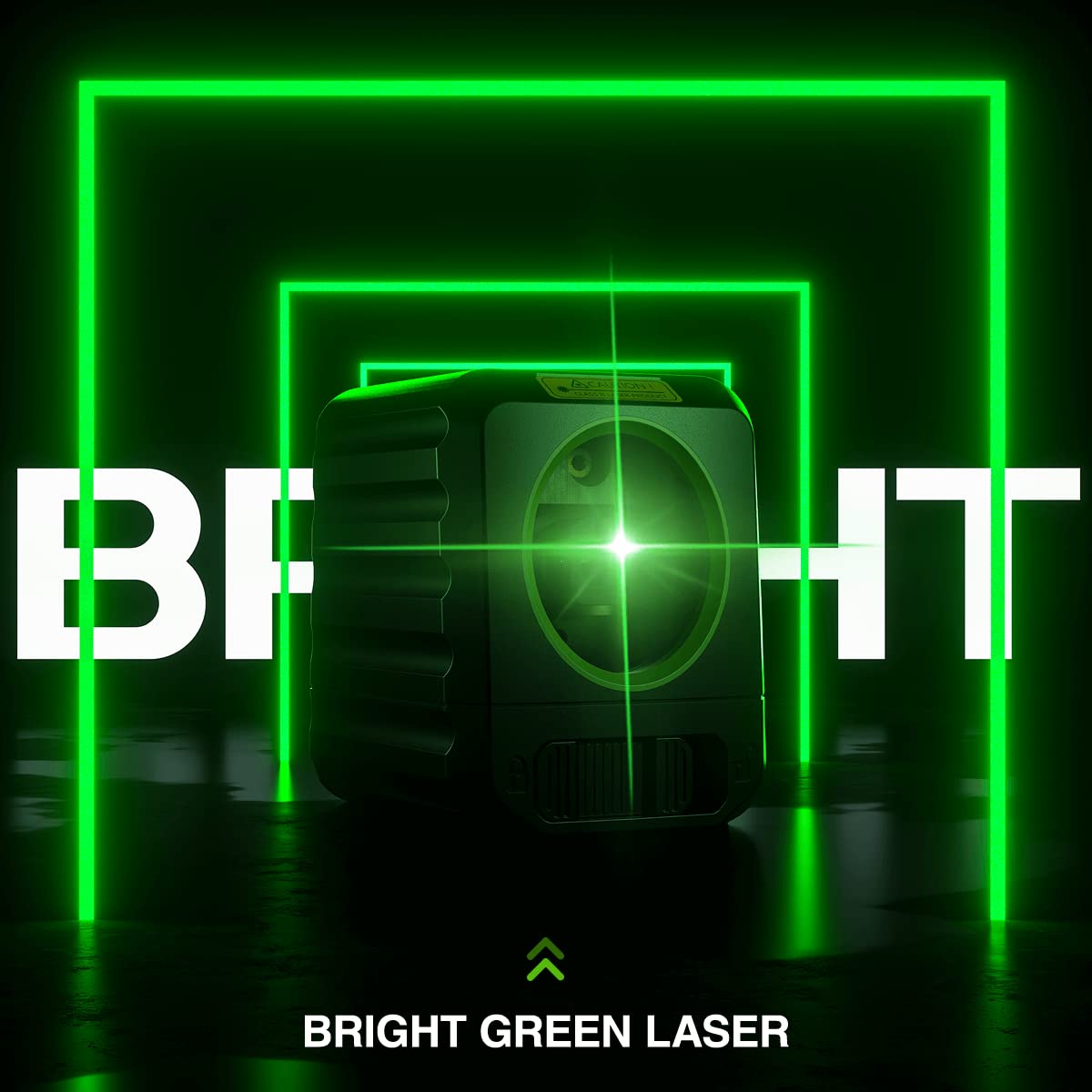

Huepar cross line laser level adopt advanced green laser technology. Bright green vertical and horizontal lines offer better visibility and can project up to 100 ft. away.

Easy to Use

This laser tool is simple to use and one switch operation, easy to switch modes and ensure fast and error-free work, makes your life more efficient and simple.
