Part Number | 621CG_Laser Level |
---|---|
Item Weight | 2.85 pounds |
Product Dimensions | 4.8 x 2.7 x 4.2 inches |
Item model number | 621CG |
Material | ABS+Rubber |
Installation Method | self leveling and manual mode |
Item Package Quantity | 1 |
Number Of Pieces | 1 |
Performance Description | Self-leveling time within 3s |
Measurement Accuracy | +/-1/9" at 33Ft |
Laser Beam Color | Green beam |
Plug Profile | 1/4"-20 and 5/8"-11 |
Switch Style | Slide switch |
Special Features | Self-leveling, tilt mode |

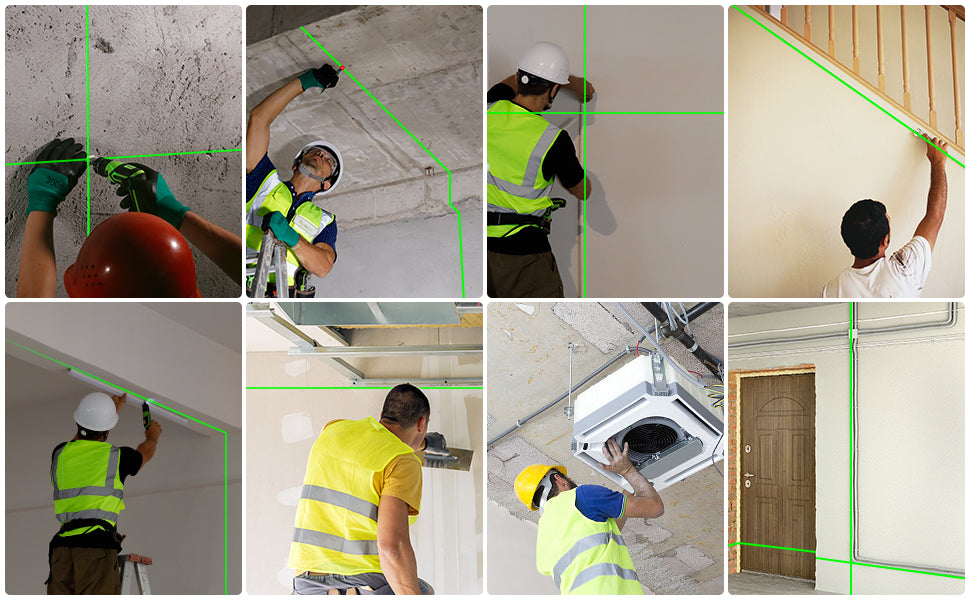

Usage | Commercial/Residential/Indoor/Outdoor/Construction/DIY/Picture hanging/Drywall |
Included Components | (1) Magnetic Pivoting Base, (1) Laser Target Plate, (4) AA batteries, (1) Portable bag, (1) User manual |
Batteries Included? | Yes |
Batteries Required? | Yes |
Battery Cell Type | Alkaline |
Description Pile | AA |
Huepar Accessories Guides
Huepar Line Laser Receiver
The LR5RG / LR6RG is a laser detector compatible with most Huepar laser levels on Pulse Mode, detecting red or green lasers up to 200 feet away. Main products include LR5RG, LR6RG, LR8RG.
Huepar Tripods
Made of aluminum alloy for stable support with a maximum load capacity of 10kg/22lb. Compatible with most measuring tools. Main products: LP36, M3Y, TPD05, TPD14, TPD16.
Huepar Laser Adapter
The AT2 adapter can be connected to any device that features a male thread, including Huepar laser levels such as 622CG/R, 621CG/R, 8211G, among others. The AT3 adapter is compatible with devices having 5/8" or 1/4" male thread, supporting models like 603CG/R, 621CG/R, and more.
Huepar Magnetic Bracket
This accessory raises the beam to your desired reference height, featuring TPR soft rubber on all sides for shock resistance. Main products: PV3, PV5, PV7, PV11+, PV15.
Huepar Care
By purchasing this one-year extended warranty, your Laser Level can enjoy a total of 3 years of warranty service.
1. This product (Huepar Care) is a special service product and cannot be returned.
2. Valid for one year starting from the date of purchase.
3. The service includes Free replacement of accessories such as laser windows, chargers, batteries, etc, and other accidental damage.
4. Restricted to huepar.com orders.
5. Huepar official has the final right to interpret this.
Overview
-

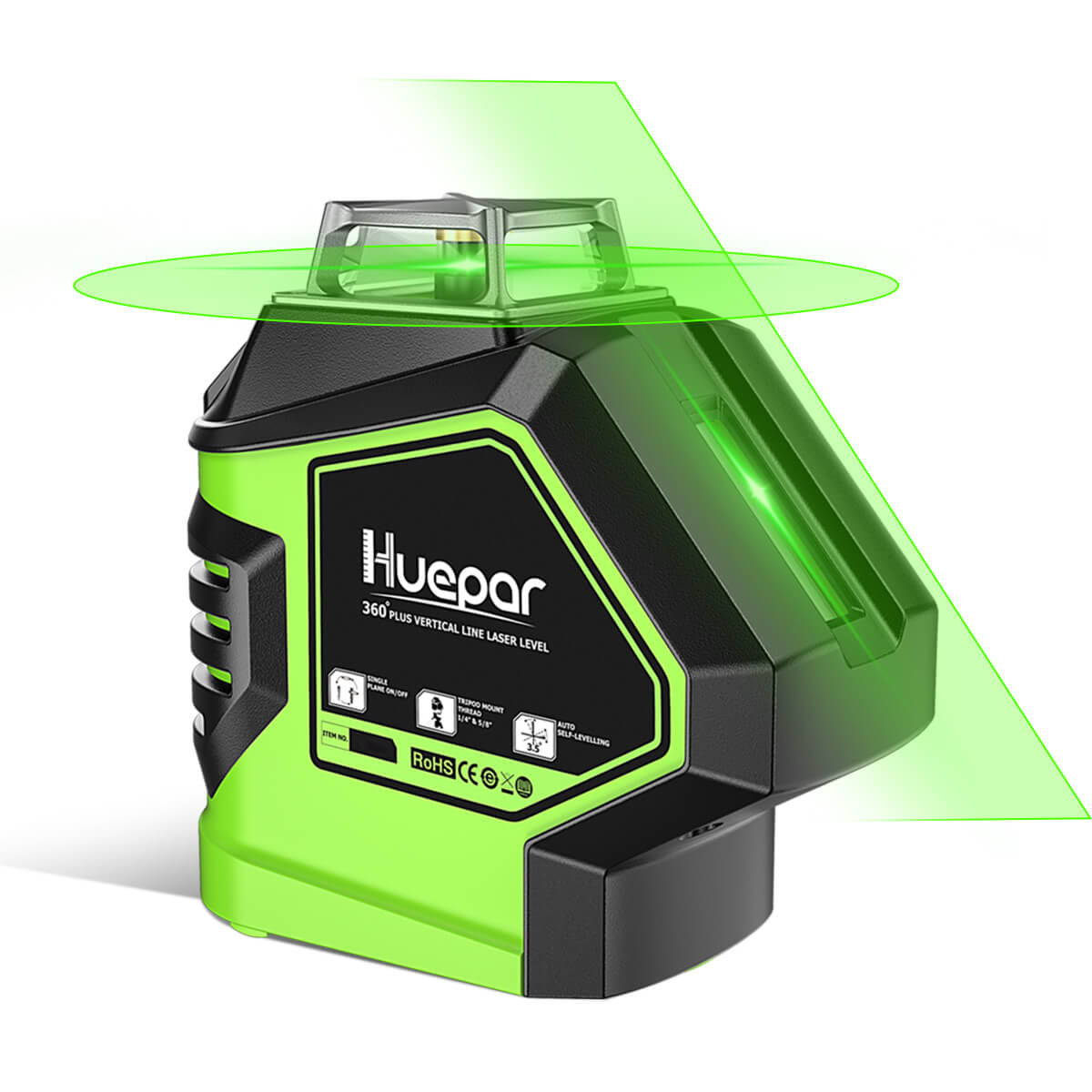

360-DEGREE HORIZONTAL LINE AND TWO PLUMB DOTS: With one ultra-bright 360° horizontal & one 140° vertical green beams, 621CG Laser Level provides all-around leveling coverage even in big job-site. And unique up and down plumb spots provide additional benefits of ceiling, points transfer, leveling, alignment, plumbing and squaring applications to suit users' needs.
-
ALL-IN-ONE LASER: 621CG laser level offers all-in-one versatility for users who perform a variety of tasks involving squaring, plumbing and leveling. Five modes are freely selectable independently, including Horizontal mode, Vertical mode, Horizontal&Vertical mode, Plumb points mode, and all beams on mode.
-
POWER-SAVING OUTDOOR PULSE MODE: This laser level projects brighter green laser than standard red beams with accuracy of +/- 1/9" at 33Ft for lines, 1/9" at 33Ft for dots. Besides brighter green beam, a power-saving pulse mode extends laser range up to 180ft with Huepar LR-6RG Line Laser Receiver in bright light or outdoor conditions and use for a longer time.
-
SELF-LEVELING & MANUAL MODE: With our smart pendulum system, this laser level tool self levels and indicates out-of-level condition while pendulum unlocked. Once pendulum locked, it switches to manual mode to lock lines for use at any angle.
621CG Laser Level Specifications:
-
Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
-
Laser Wavelength: 505-520nm
-
Horizontal/Vertical Accuracy: ±1/9" at 33 Ft.
-
Plumb Dot Accuracy: 1/9" at 33 Ft.
-
Leveling/Compensation Range: ±3.5°
-
Working Distance (Line): 130Ft.(100 LUX) ,180Ft. with Huepar Line Laser Receiver
-
Operating Time: 4 hours with all laser beams on
-
Power Source: 4×˝AA˝ (LR6)
-
IP Rating: IP54
-
Operation Temperature Range: 32℉ ~ 113℉ (0℃~ 45℃)
-
Mount Size: 1/4"-20 and 5/8"-11

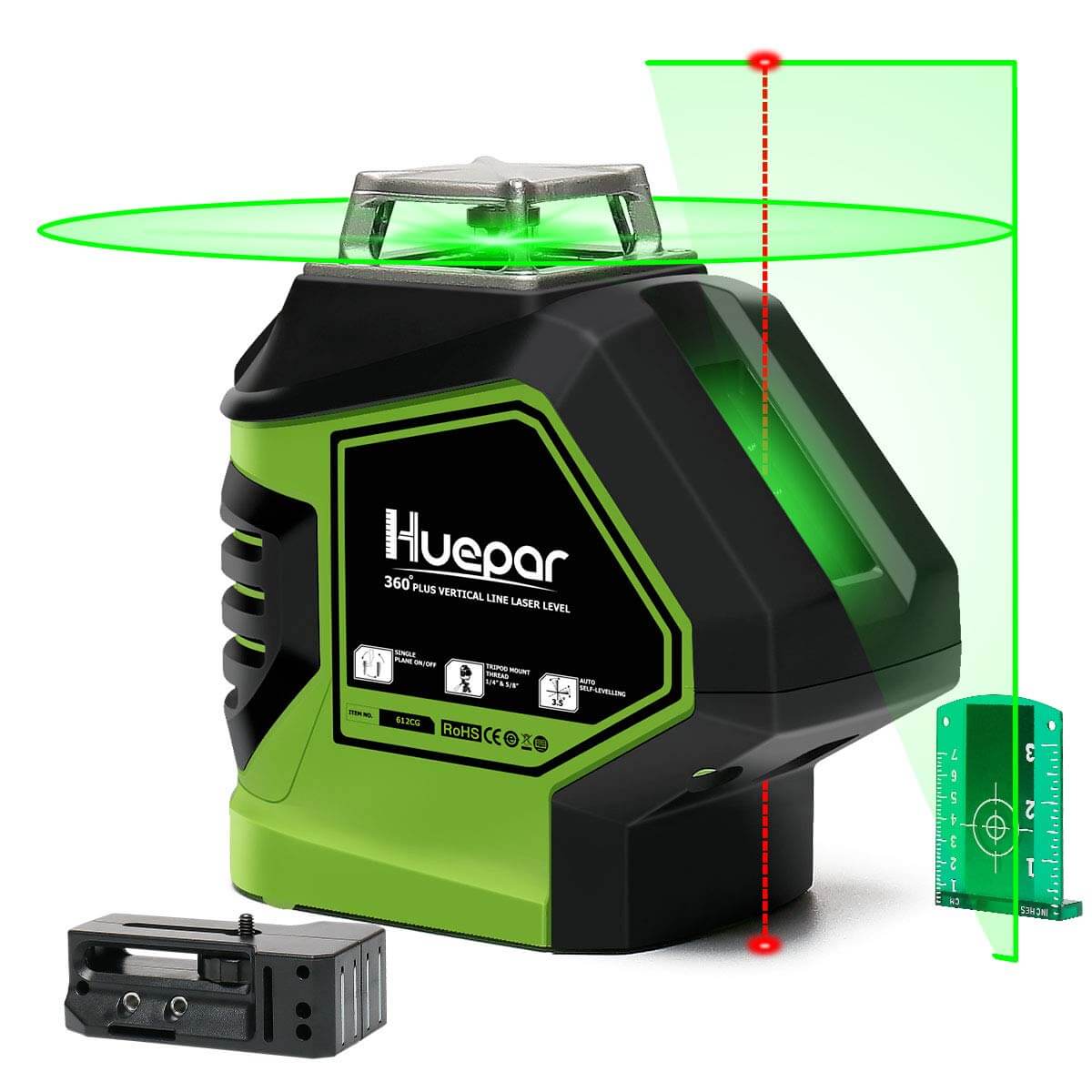

Items in the Package
- 1 x Huepar 621CG Green Self-Leveling Cross Line Laser Level
- 1 x Magnetic Pivoting Base
- 1 x Portable Bag
- 1 x Laser Target Plate
- 1 x User Manual
- (Not including AA Battery)
Multiple Line Switching Functions
-

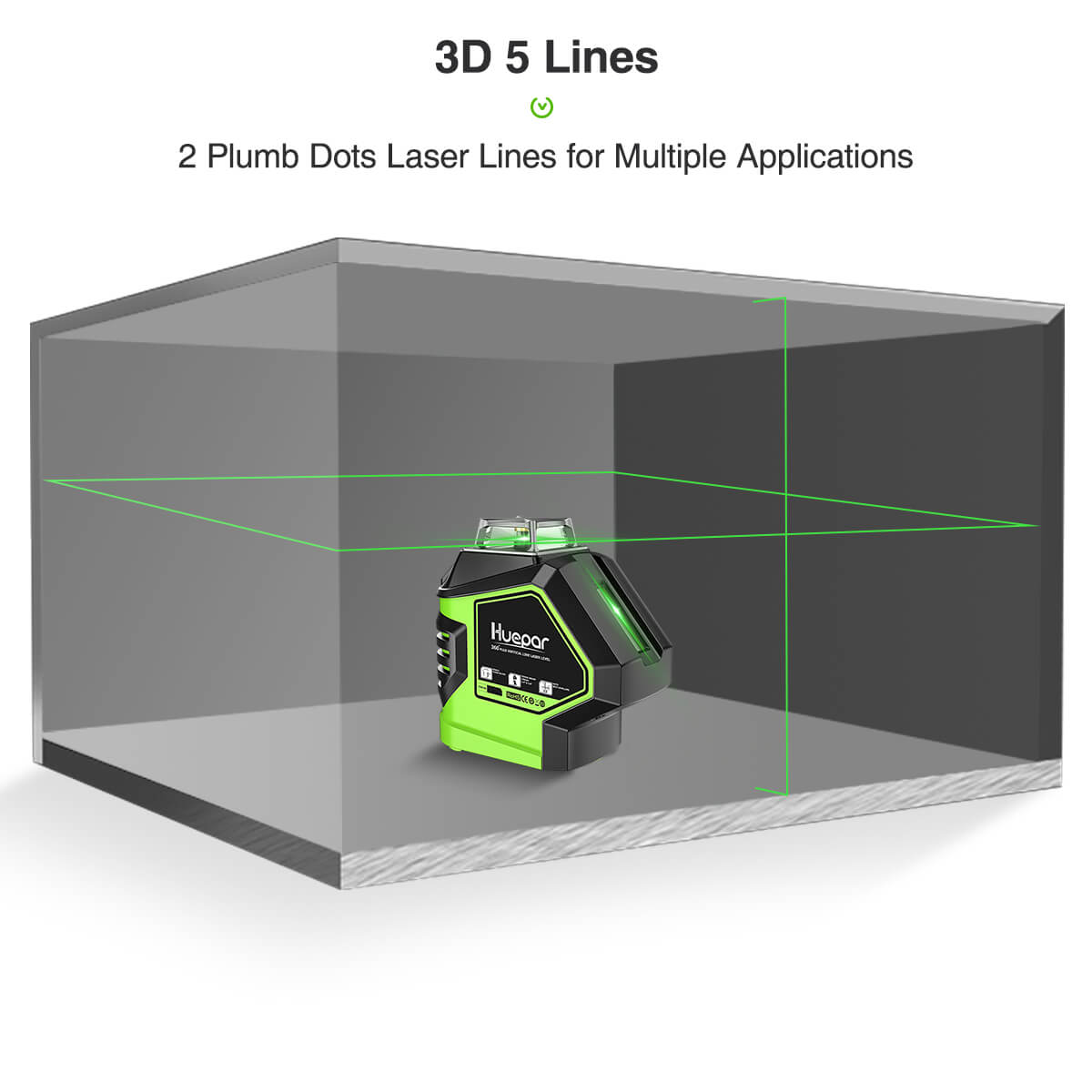

This professional cross-line laser projects one 360° Horizontal and one 140° Vertical lines for all-around leveling coverage, even in big job-site.
-
This laser level also projects up&down centered points on the floor and ceiling.
-
Five modes can be freely selected independently: All Lasers on mode, 360 Horizontal mode, Vertical mode, Horizontal&Vertical mode and Plumb Points mode.
Self-leveling mode & Manual mode
Self-leveling mode:
When the laser tool is switched to the unlocked position, self-leveling mode is enabled. The laser beam will blink continuously at 2Hz when the tool is beyond self-leveling range (4°±1°).
Manual mode:
When the pendulum locked, you can place the laser tool at various angles to project non-level straight lines. The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.
Pulse Mode
-
Turn ON pulse mode: After power on, short press the button besides the power button to turn on the pulse mode. The indicator will light up in red.
-
When the pulse mode turned on, the laser tool can be used with Huepar Line Laser Receiver (needs to be purchased separately) to work in brighter condition or a larger working distance up to 180ft.
-
When use with a receiver, it’s necessary to turn on the pulse mode.
-
It is compatible with Huepar Line Laser Receiver only.
Modes Of Operations
-

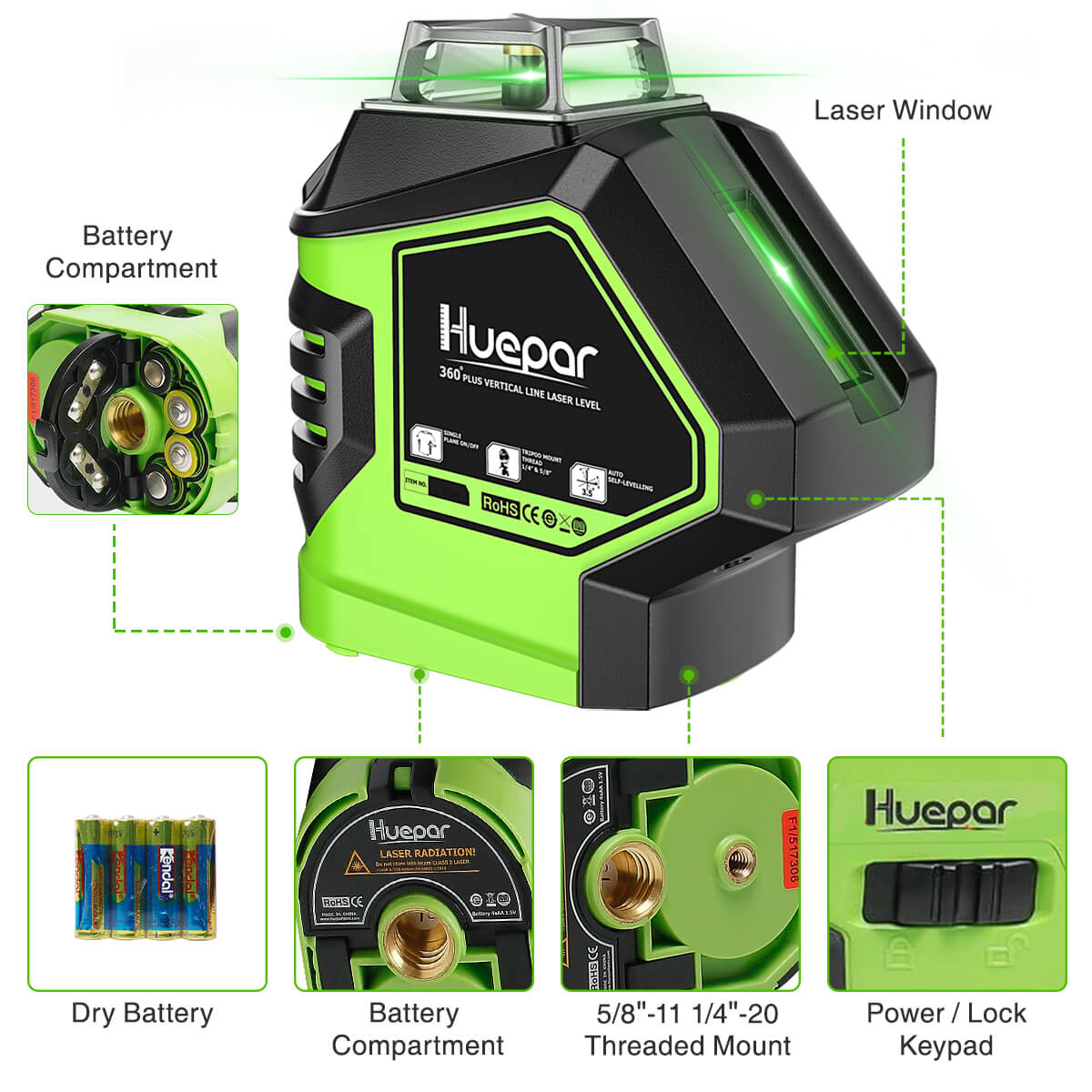

Please follow the icon on the battery cover to install the battery properly(The battery is negative on the bottom side and positive on the middle side).
-
Two ways of turn on the laser tool.
-
Method 1: when the pendulum is in the locked position, press the button and keep it pressed for ≥ 2 seconds to turn on the laser tool. Activate the horizontal line and manual mode by default.
-
Method 2: slide the pendulum to the unlock position, activate the horizontal line and the self-leveling mode by default
Technical Details
Find your perfect laser level
Product Info | |||
---|---|---|---|
Product SKU |
621CG
|
6141G
|
8211G
|
Product type |
Cross Line Laser Level
|
Cross Line Laser Level
|
Cross Line Laser Level
|
Featured | |||
Number of Lines |
|
|
|
Laser Lines |
|
|
|
Laser Beam Supplier |
|
|
|
Laser Beam Color |
|
|
|
Laser Wavelength |
|
|
|
Line Accuracy |
|
|
|
Leveling / Compensation Range |
|
|
|
Max Self-leveling Time (Seconds) |
|
|
|
Bluetooth Connectivity |
|
|
|
Remote Control |
|
|
|
Dot Accuracy |
|
|
|
Line Switching |
|
|
|
Pulse Laser Receiver Mode |
|
|
|
Working Range (60-100 LUX) |
|
|
|
Working Range with Detector |
|
|
|
AA Battery |
|
|
|
Working Time (Hours) |
|
|
|
Mount Size |
|
|
|
Durable Design |
|
|
|
Hard Carry Case |
|
|
|
