Overview
-

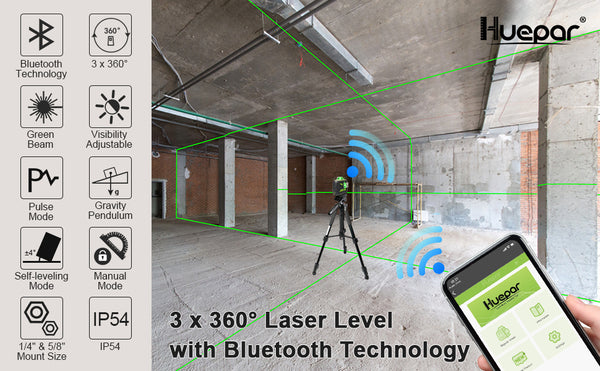

BLUETOOTH TECHNOLOGY: With Bluetooth connectivity, users can control the setup of the laser from across the room with smart phone and Huepar laser level App. Huepar App is free to download and use, the App can switch ON/OFF the laser lines and pulse mode, select the laser planes, adjust the line visibility and provide out-of-level alarm.
-

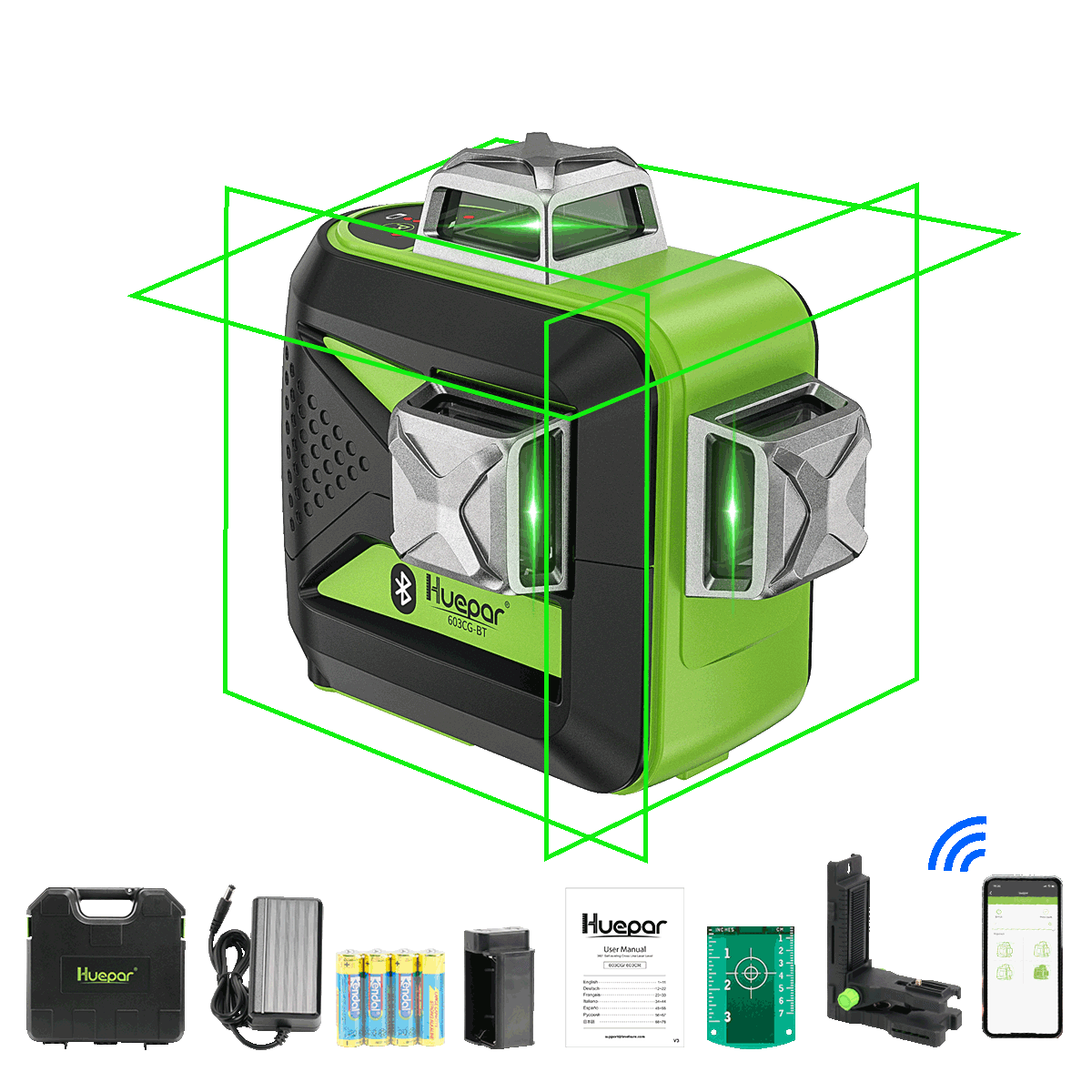

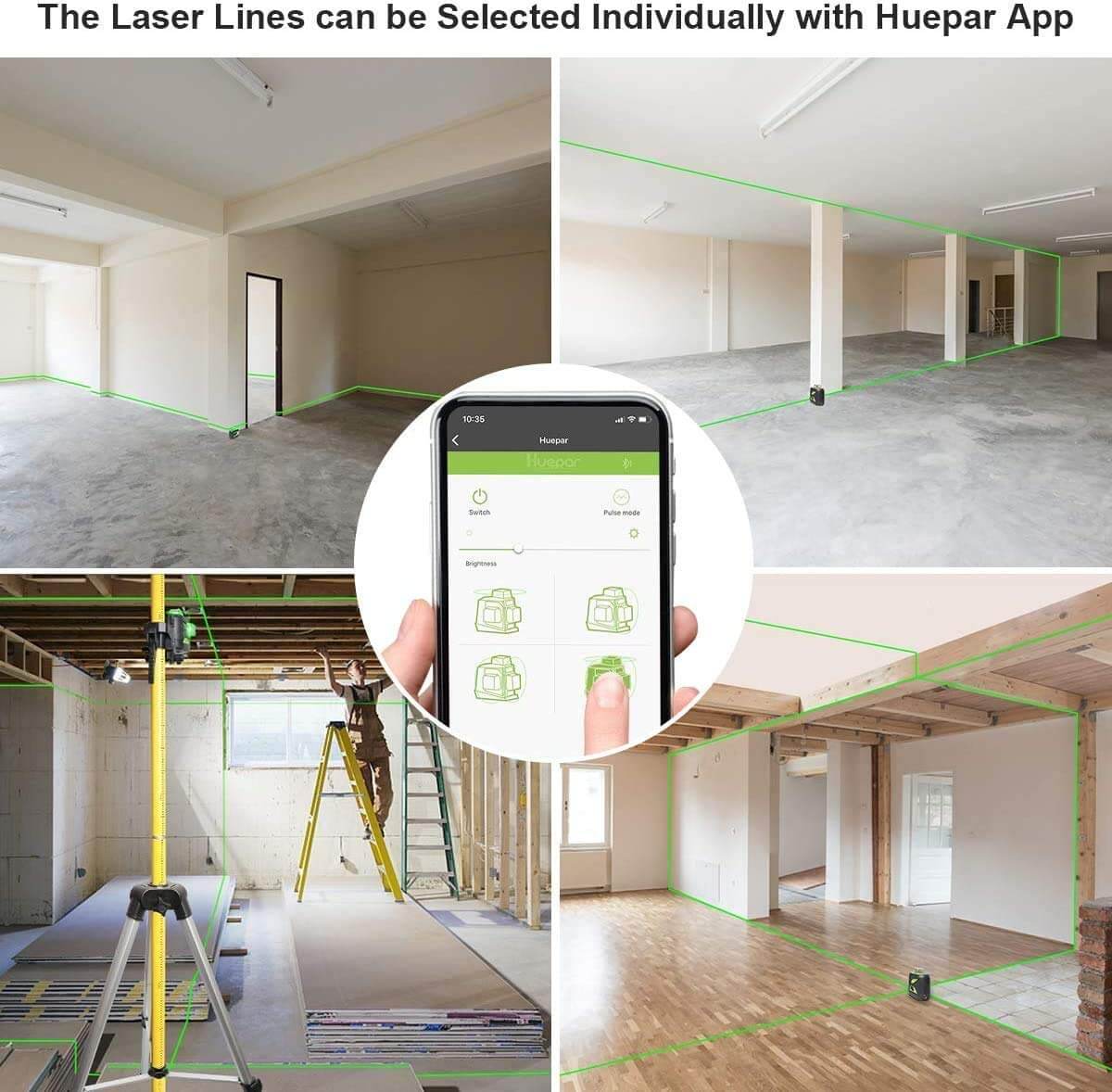

MULTIFUNCTIONAL 3 x 360 LASER TOOL: One 360° horizontal and two 360° vertical planes enable users to cover the floor, wall, ceiling all around the room. The three laser lines can be selected individually depending on job site applications. With our smart pendulum system, this green light laser level self levels and indicates out-of-level condition while pendulum unlocked. Once pendulum locked, it switches to manual mode to lock lines for use at any angle.
-

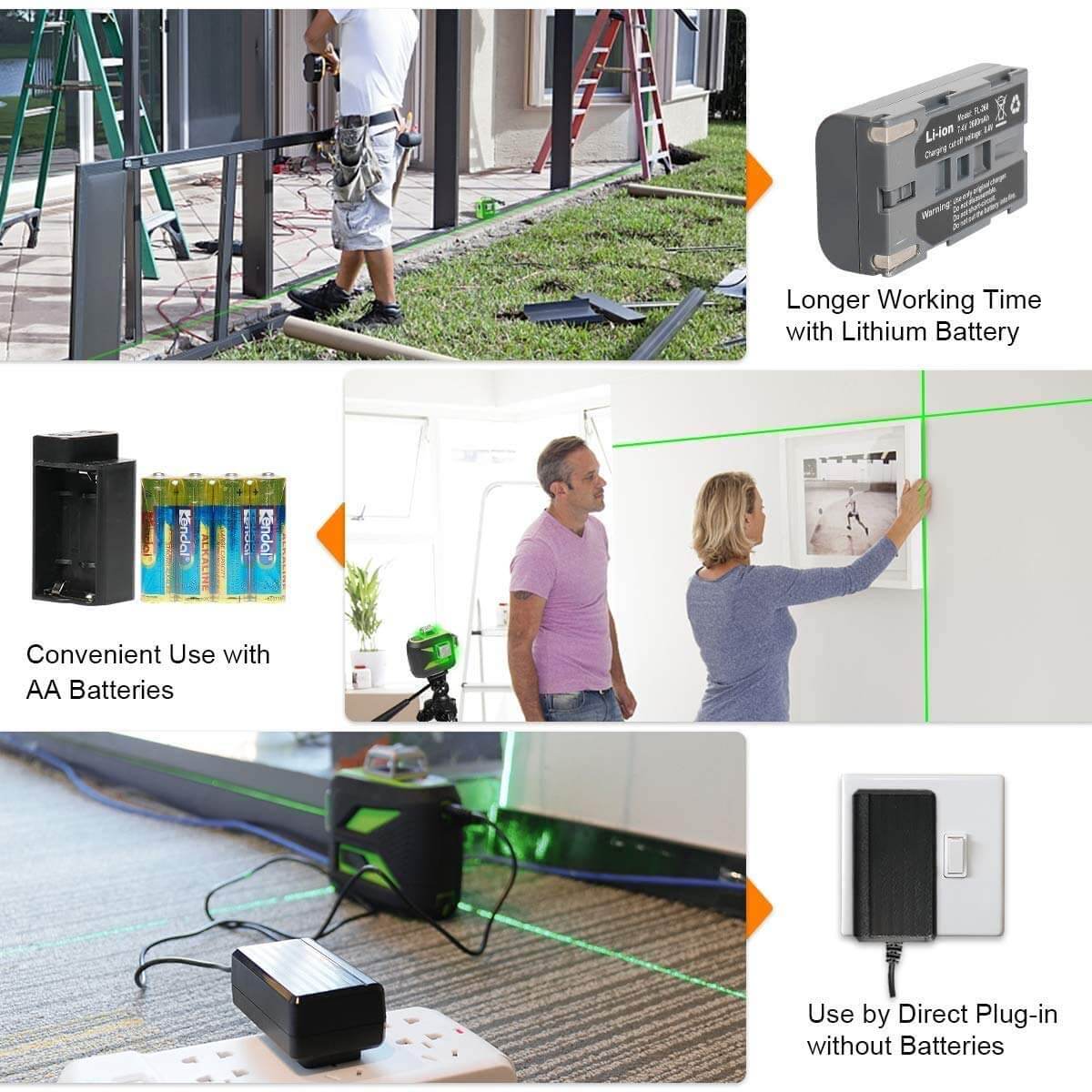

TRIPLE POWER TECHNOLOGY: This green light laser level employed the included large capacity lithium battery (can be purchased easily at local market) for extended run-time, or with 4 AA alkaline batteries. In addition, this green light laser level tool can be used at job site with direct input charging when taking out the battery. Charging protection helps prevent the tool from overcharge. 4 battery indicators on keypad allow users to know the current battery volume anytime.
-

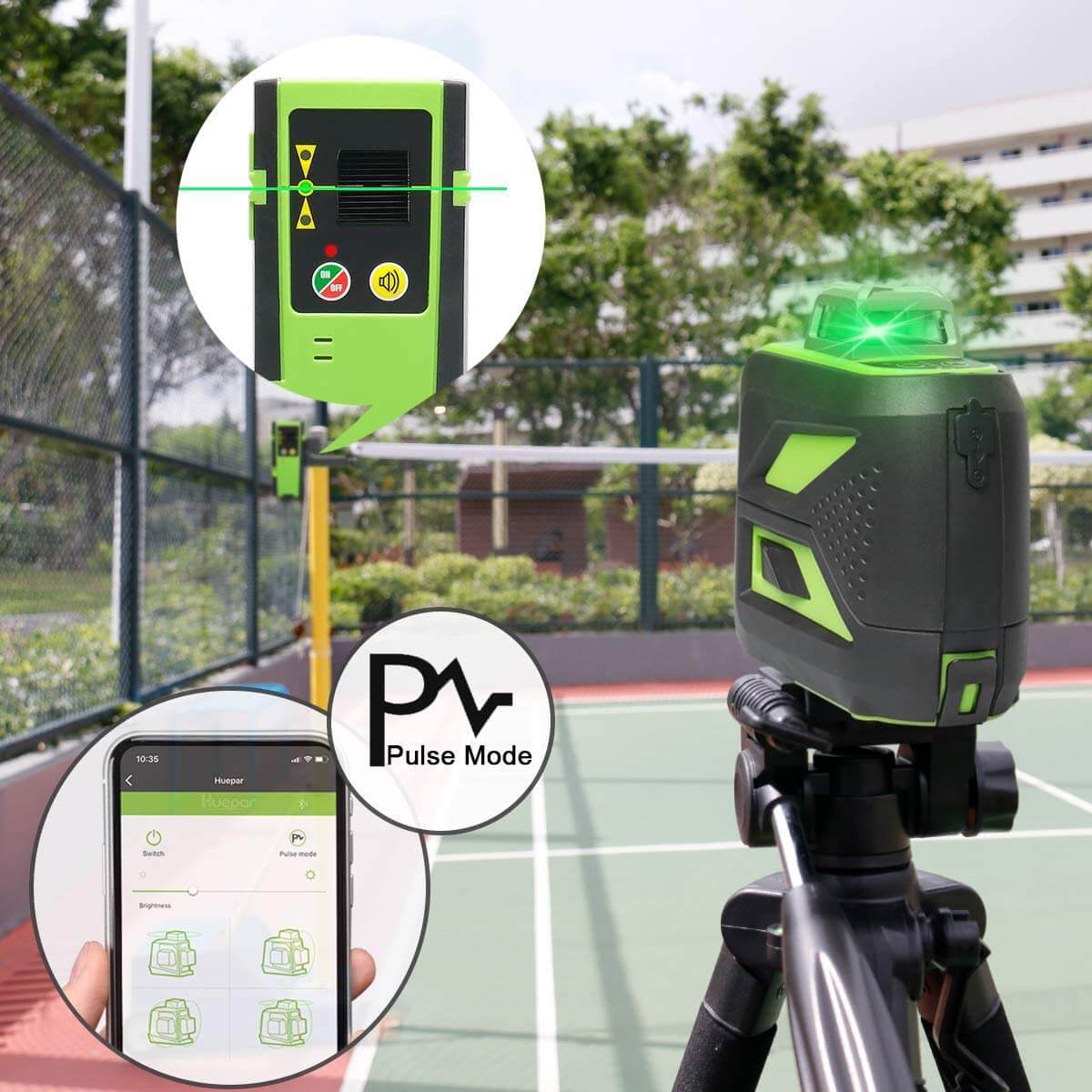

VISIBILITY AND PULSE MODE: This green laser level projects green laser beam which is up to 4X brighter than standard red beams. Connect the laser tool with the Huepar APP to adjust the brightness of the laser according to work or environment needs, which can extend overall battery life of the line laser. With the outdoor pulse mode, the working range can be extended up to 200Ft with Huepar Line Laser Receiver LR-6RG/LR-5RG in bright-light or outdoor conditions.
-

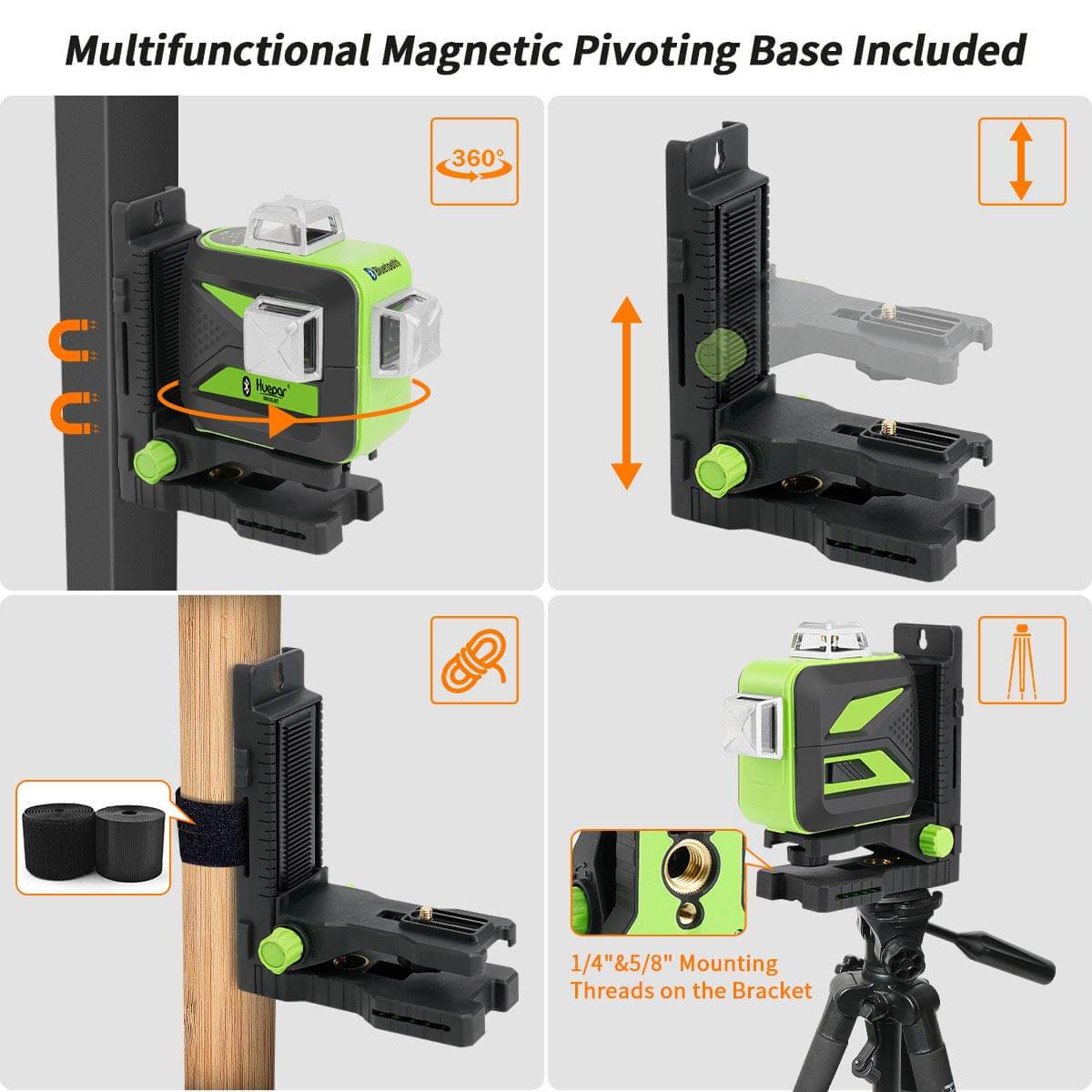

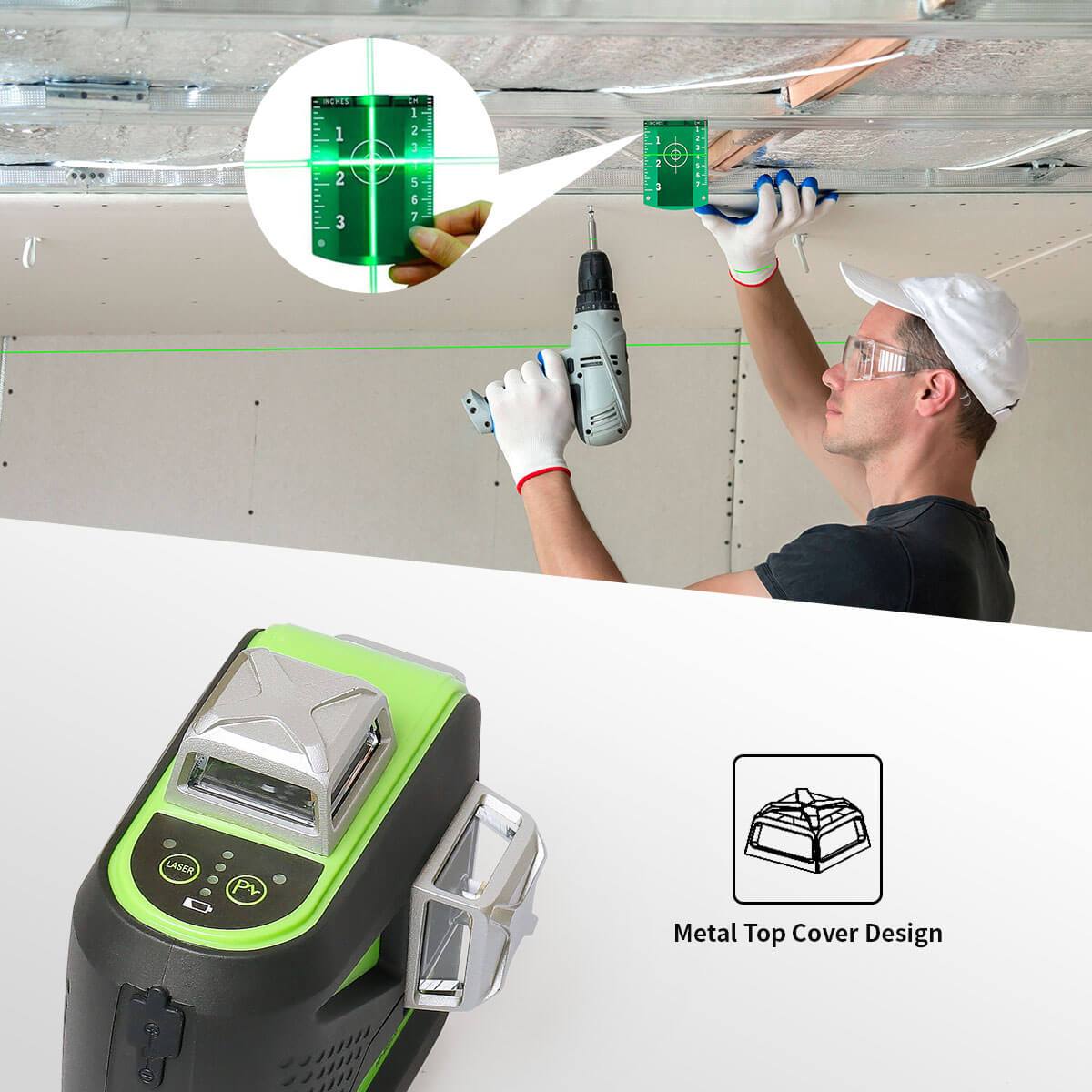

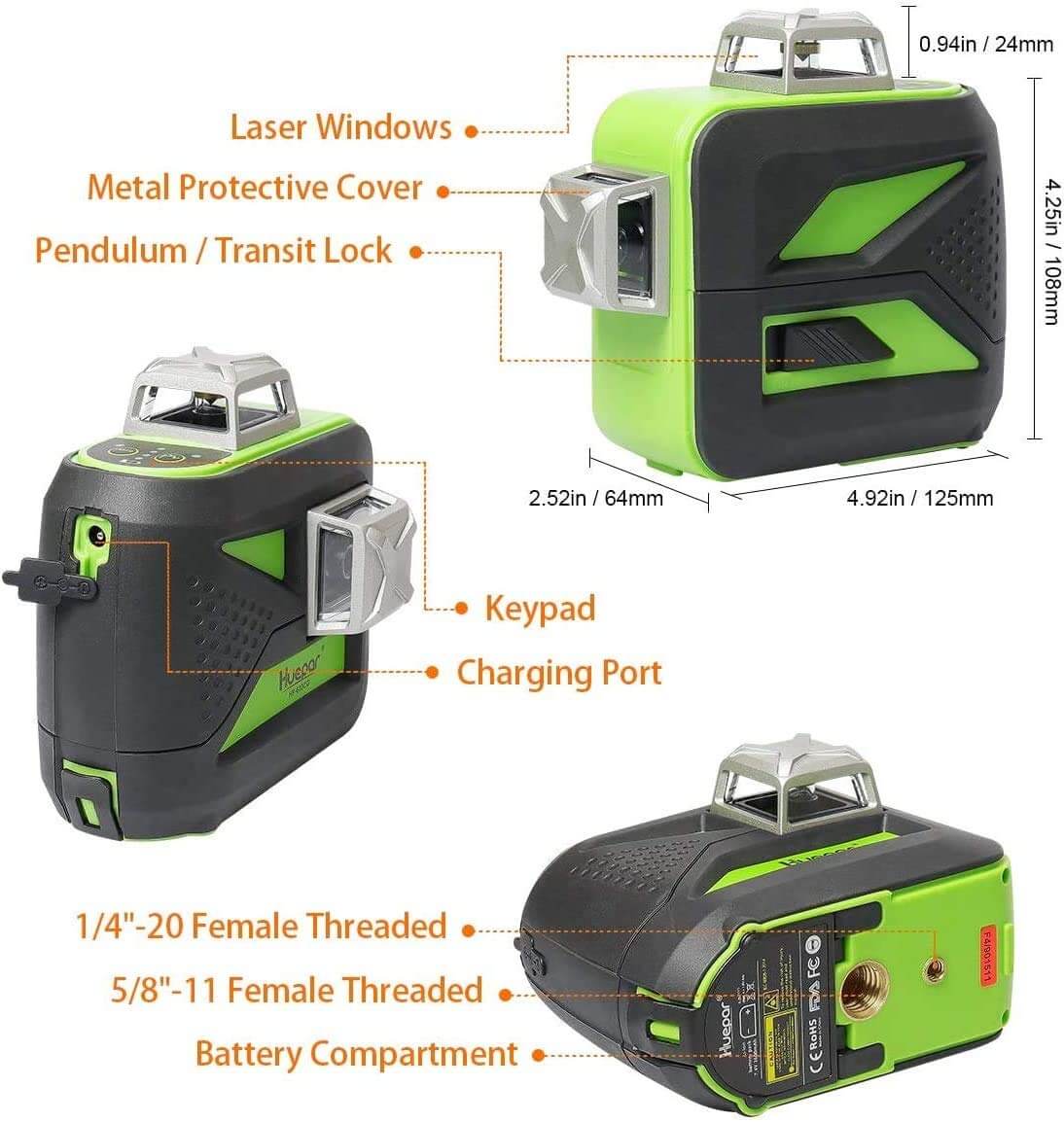

DURABLE DESIGN & KIT CONTENTS: Over-molded metal laser window with IP54 water/dust resistance ensures you work well in hazardous working conditions. The laser tool also offers 1/4"-20 and 5/8"-11 mounting threads to suit for different tripod threads. Strong magnetic pivoting base allows for attachment to metal track and steel. The kit comes with a hard carry case bringing much more convenient to carry and store the laser tool.
With advanced laser level technology, Huepar is committed itself to providing solutions for a wide variety of applications of greater accuracy and precision. Shop green light laser level at Huepar official store now!
603BT-H 3D Green Light Laser Level with Bluetooth Specifications:
- Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
- Laser Wavelength: 505-520nm
- Horizontal/Vertical Accuracy: ±1/9 inch at 33Ft.
- Leveling/Compensation Range: ±4°
- Working Distance (Line): 130Ft (100 LUX), 200Ft. with Huepar Receiver LR-5RG/LR-6RG
- Operating Time with Lithium Battery: 7 hours with all laser beams on
- Operating Time with AA Batteries: 2 hours with all laser beams on
- Power Source: Li-ion battery&4×AA (LR6) batteries
- Package: Hard Carrying Case
- IP Rating: IP54
- Operation Temperature Range: 14℉ ~ 113℉ (-10℃~ 45℃)
- Mount Size: 1/4"-20 and 5/8"-11
WARNING: Avoid direct exposure of the laser beam to the eyes.

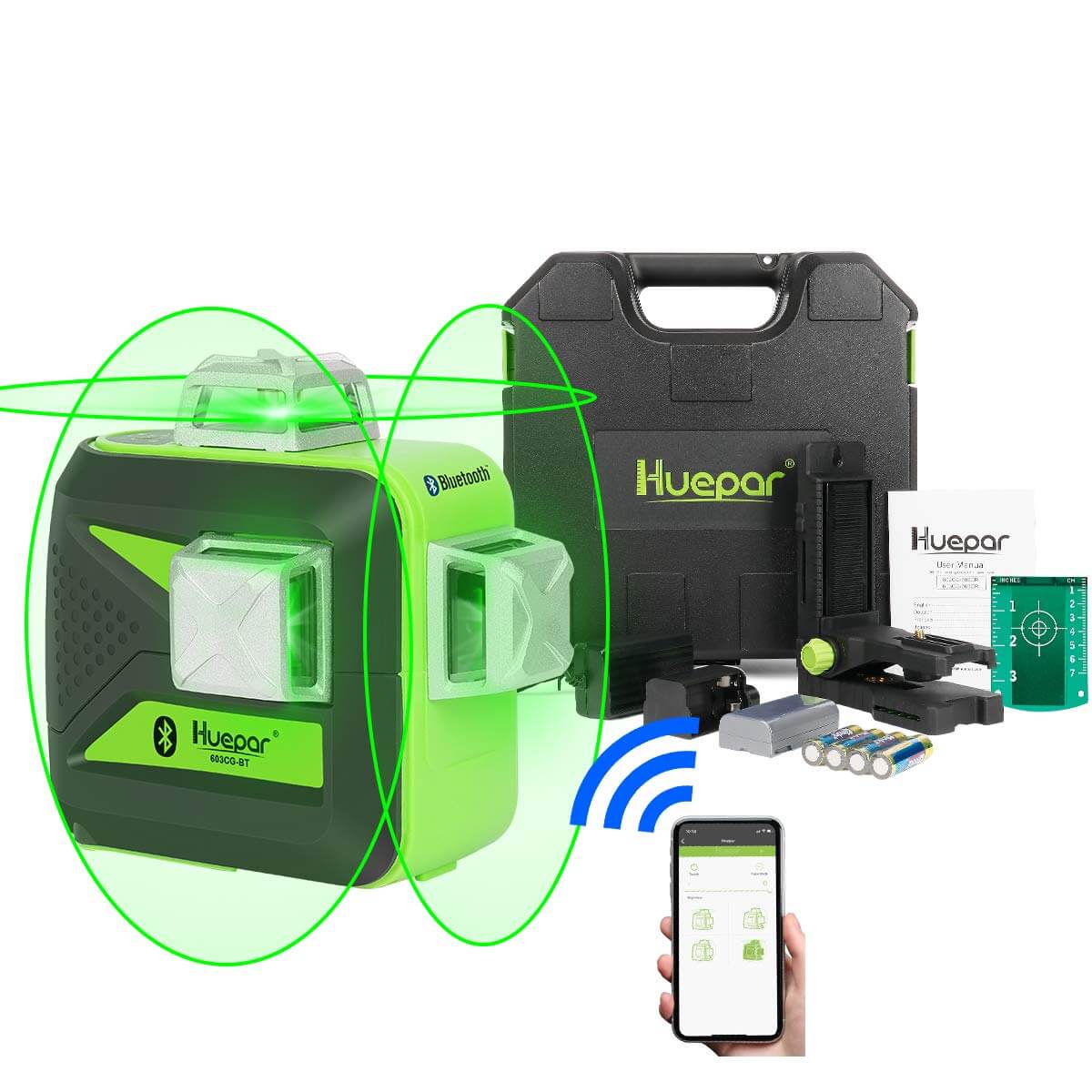

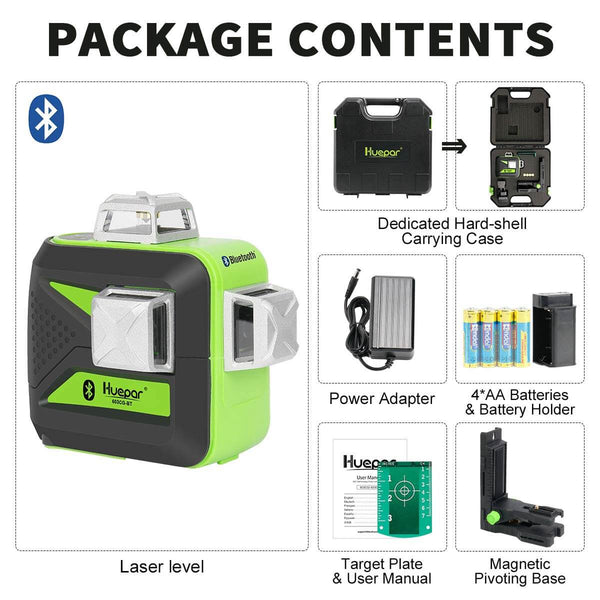

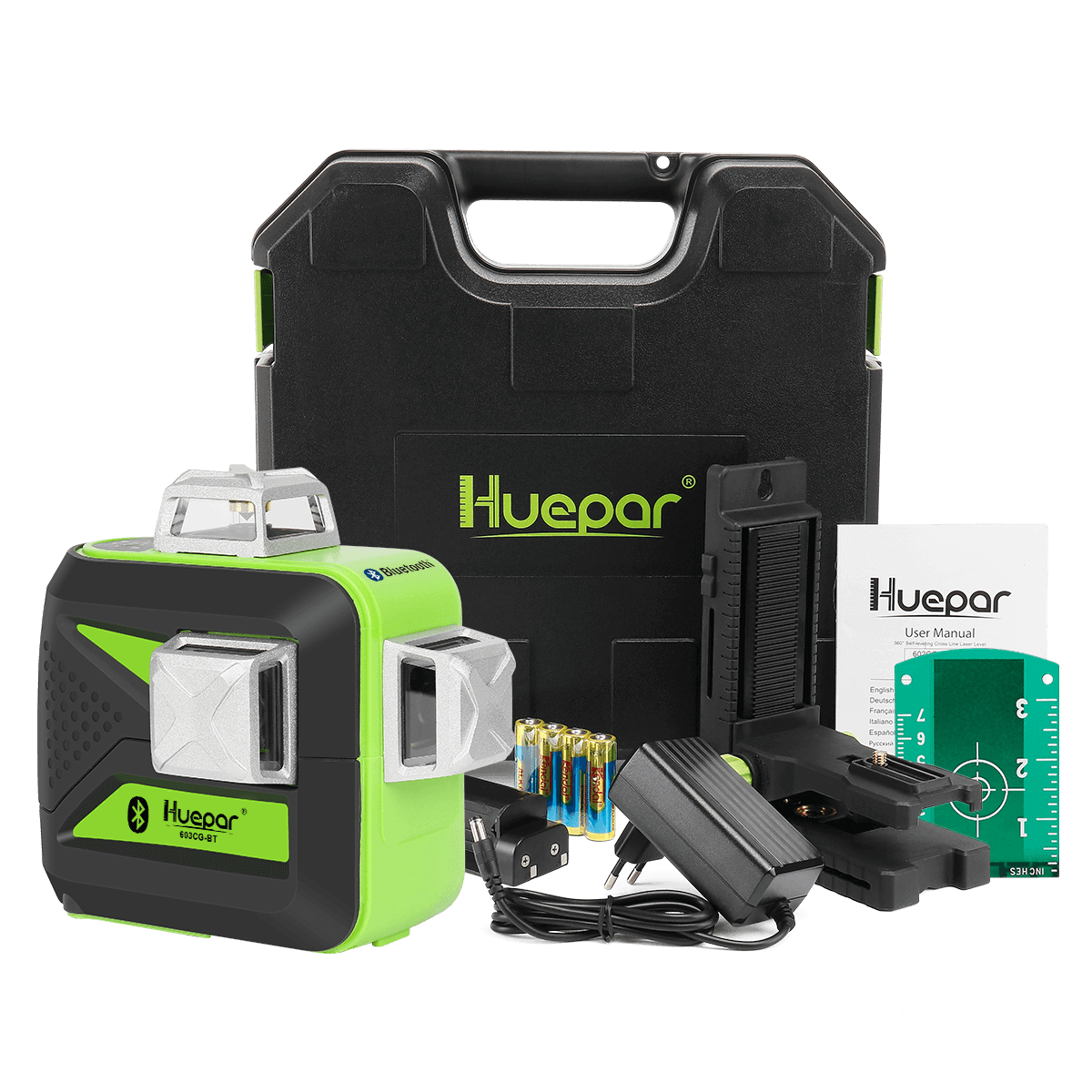

Package Contents:
- 1 x Huepar 603CG-BT 3D Cross Line Laser Level
- 1 x Magnetic Pivoting Base
- 1 x Rechargeable Li-ion Battery
- 4 x AA Batteries
- 1 x AA Battery Holder
- 1 x Power Adapter
- 1 x Laser Target Plate
- 1 x Hard Carrying Case
- 1 x User Manual
