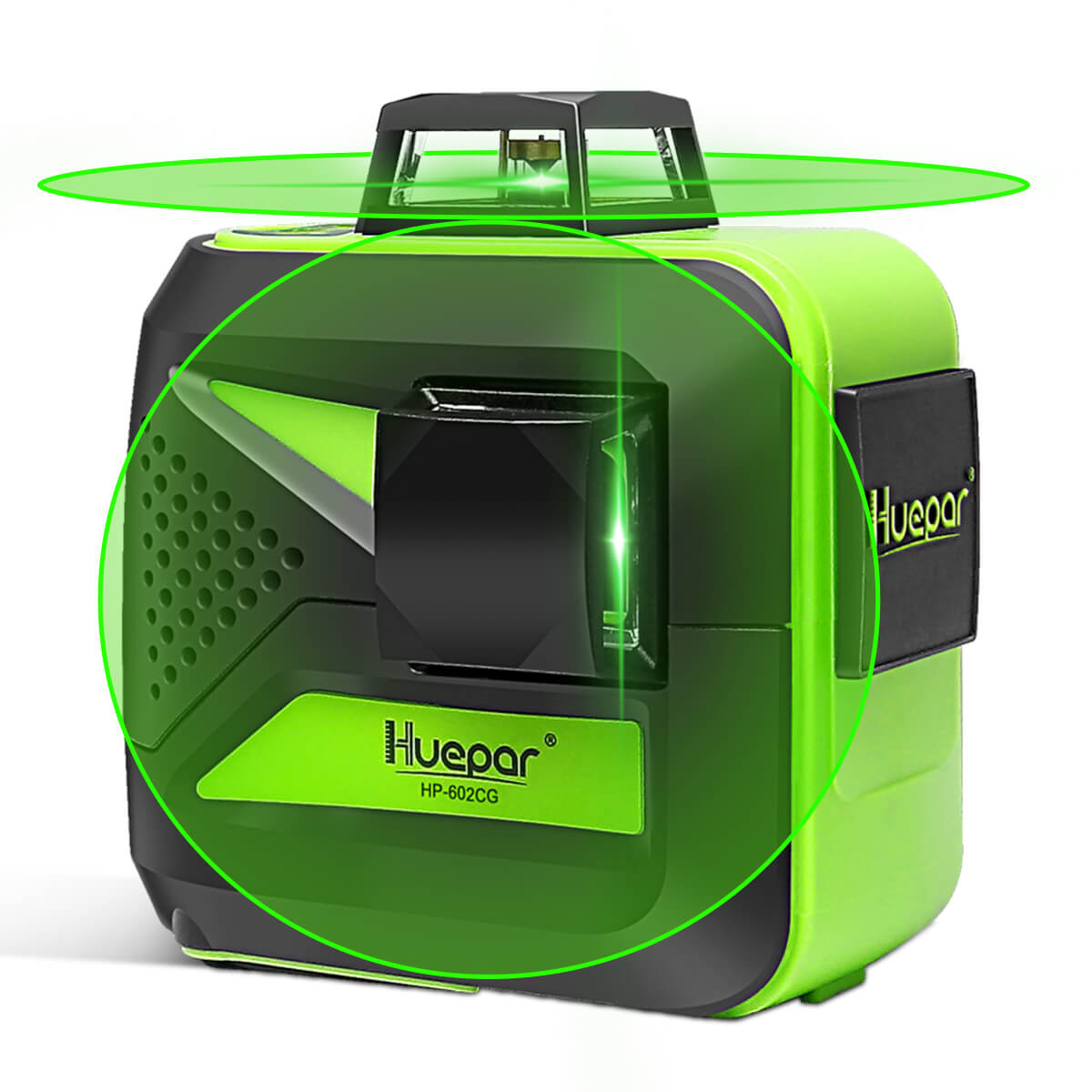

Huepar 602CG - 2D Cross Line Self-Leveling Laser Level
☑️ BLACK FRIDAY - 12% OFF , Code: BFCM2023
-
Free Shipping & ETA:Dec 04 - Dec 08
-
24 Months Official Warranty: Easy Returns & Exchanges
Huepar 602CG - 2D Cross Line Self-Leveling Laser Level
602CG Laser Level Specifications:
-
Laser Class: Class 2 (IEC/EN60825-1/2014), output power <1mW
-
Laser Wavelength: 505-520nm
-
Leveling Accuracy: ± 1/9 Inch at 33 Feet
-
Horizontal/Vertical Accuracy: ± 1/9 Inch at 33 Feet
-
Leveling/Compensation Range: 4°±1°
-
Working Distance with Huepar Receiver: 200Ft
-
Operating Time with Lithium Battery: 7 hours with all laser beams on
-
Operating Time with AA Batteries: 4 hours with all laser beams on
-
Power Source: Li-ion battery&4×˝AA˝ (LR6) batteries
-
Operation Temperature Range: 14℉ ~ 113℉ (-10℃~ 45℃)
WARNING: Avoid direct exposure of the laser beam to the eyes.
Technical Details
| Manufacturer | HUEPAR |
|---|---|
| Item Weight | 3.19 pounds |
| Package Dimensions | 8.4 x 8.25 x 6.5 inches |
| Item model number | 602CG |
| Color | Green Beam |
| Material | ABS+TPR |
| Power Source | Battery-powered |
| Performance Description | Self-leveling time within 3s |
| Measurement Accuracy | +/- 1/9" at 33 feet |
| Plug Profile | 1/4"-20 and 5/8"-11 |
| Switch Style | Slide switch |
| Special Features | Green-line |
| Included Components | 1 x Huepar 602CG 360 Degree Green Self-Leveling Cross Line Laser Level, 1 x Rechargeable Lithium Battery, 1 x Lithium Battery Charger, 1 x Power Adapter, 4 x AA (LR6) Batteries, 1 x AA Battery Holder, 1 x Magnetic Pivoting Base, 1 x Laser Target Plate, 1 x User Manual, 1 x Portable Bag |
| Batteries Included? | Yes |
| Batteries Required? | Yes |
Self-leveling mode & Manual mode
Self-leveling mode:
When the laser tool is switched to the unlocked position, self-leveling mode is enabled. The laser beam will blink continuously at 2Hz when the tool is beyond self-leveling range (4°±1°).
Manual mode:
When the pendulum lock is in locked position, you can place the laser tool at various angles to project non-level straight lines. The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.
Pulse Mode
-
Turn ON pulse mode: After power on, short press the button besides the power button to turn on the pulse mode. The indicator will light up in red.
-
Pulse mode extends the working range up to 200Ft in bright working conditions, using with Huepar Line Laser Receiver.
-
When use with a receiver, it’s necessary to turn on the pulse mode.
-
It is compatible with Huepar LR-6RG Line Laser Receiver only.
Easy Use
-
Durable design: Over-molded housing with IP54 water/dust resistance ensures you work well in hazardous working environments.
-
Green Target Plate: Increases the visibility of the laser beam.
-
360° Strong Magnetic Pivoting Base: Allows for attachment to metal track and steel，supporting you to turn the laser level around at 360 degree , projecting lines at any angle
-
Two Mount Sizes: 1/4"-20 and 5/8"-11 mounting threads for temporarily fastening in place or being fixed on tripod.
Triple Power Supply
-
This laser tool utilizes the included large capacity lithium battery which is compatible with Samsung SB-L110 battery.
-
This laser tool comes with an holder for installing AA battery for using the tool.
-
Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.
-
Charging protection help prevent the tool from overcharge.
All official website orders will automatically receive a free 2-year membership warranty.
We insist on providing customers with high-quality products and promise to provide customers with 24-month worry-free after-sales service.
The time frame of an order delivery is divided into two parts:
- Processing time: 1-2 working days
- Shipping time: 2-5 working days
We offer free shipping on orders of $99 or more. If your order does not qualify for free shipping, the shipping fee will be shown on the address-filing page once the order is settled.
We accept the following forms of payment:
1. Credit Card (Visa, MasterCard, American Express, Discover)
2. Debit Card (Visa, MasterCard, Discover)
3. Paypal
4. Paypal Credit
5. Apple Pay
6. Google Pay
7. Shop Pay
8. Affirm Financing (excluding West Virginia and Iowa)
9. Bank Transfer
PREMIUM SERVICE, SUPERIOR QUALITY
24/7 Premium service team
Equipped with factory-trained experts, Huepar's consumer service team strives to find the right solution for your needs – from advice to sales and repair & maintenance services.
You can enjoy efficient support from Huepar- we promise to respond in 24hrs and solve the problem in 48hrs.
Lifetime Customer Support
All Huepar products come with lifetime customer support - no worries about exceeding the service period.
All product defects, such as accuracy malfunction, battery and charger damage and requests for replacement parts will be dealt with on time, every time.
Note: Please contact our customer care using online chat service at https://huepar.com/support or email“support@huepar.com”if there is any problem with your payment.
Which is the Best for You?
Product SKU |
602CG
|
B02CG
|
902CG
|
|---|---|---|---|
Product type |
2D Laser Levels
|
2D Laser Levels
|
2D Laser Levels
|
Number of Lines |
|
|
|
Laser Lines |
|
|
|
Laser Beam Supplier |
|
|
|
Laser Beam Color |
|
|
|
Laser Wavelength |
|
|
|
Line Accuracy |
|
|
|
Leveling / Compensation Range |
|
|
|
Max Self-leveling Time (Seconds) |
|
|
|
Bluetooth Connectivity |
|
|
|
Remote Control |
|
|
|
Dot Accuracy |
|
|
|
Line Switching |
|
|
|
Pulse Laser Receiver Mode |
|
|
|
Working Range (60-100 LUX) |
|
|
|
Working Range with Detector |
|
|
|
AA Battery |
|
|
|
Li-ion Battery |
|
|
—
|
Working Time (Hours) |
|
|
|
Charging Time (Hours) |
|
|
—
|
Mount Size |
|
|
|
Durable Design |
|
|
|
Hard Carry Case |
|
|
|
